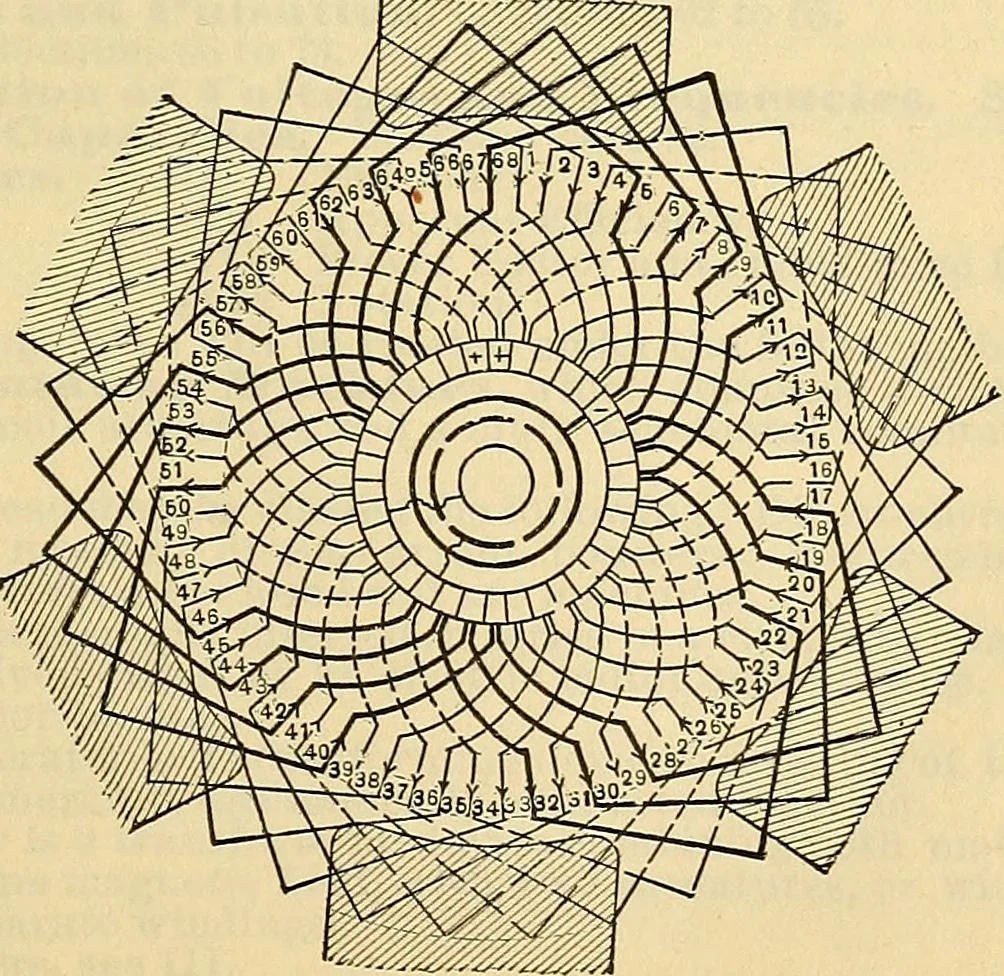

Two-Circuit Winding- for Three-Phase RotaryTransformers. The following diagram shows the connections of the three collector ringsto the continuous current winding of a six-pole dynamo. As in the last fig-ure, the rings are connected to points on the commutator at nearly equi-distant points. … 292 ]Iote.— Connection of Static Transformers and RotaryConverters. In the use of rotary transformers two or more of these machines are some-times connected in multiple to the secondary of the static transformers, andtheir direct current leads then connected in multiple to a common bus barcircuit,…
