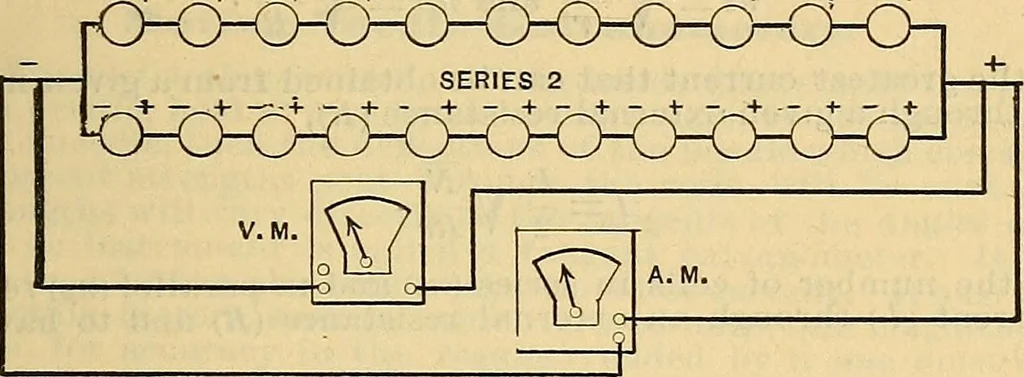

hen more cells must be placed alongside the others, that is, in parallel Avith the first row ; each row or series ofcells producing the same E.M.F. and joined together at the ends, positive BATTERIES. 19 terminals to positive terminals, and negative to negative, adding their cur-; rents together at… … Fig. 10. Battery Cells in Multiple. The reason for this is, that when two or more resistances are placed inparallel or multiple, the equivalent resistance is decreased, as is shown inanother chapter. If the resistance of one series be 10 ohms, the resistanceI of two series in multiple would be…
