Electrical engineer's pocket-book: a hand-book of useful data for electricians and electrical engineers (1901)
Foster, Horatio A. (Horatio Alvah), 1858-1913 · New York, D. Van Nostrand co.; London, E.& F.N. Spon, ltd. · leaf 47

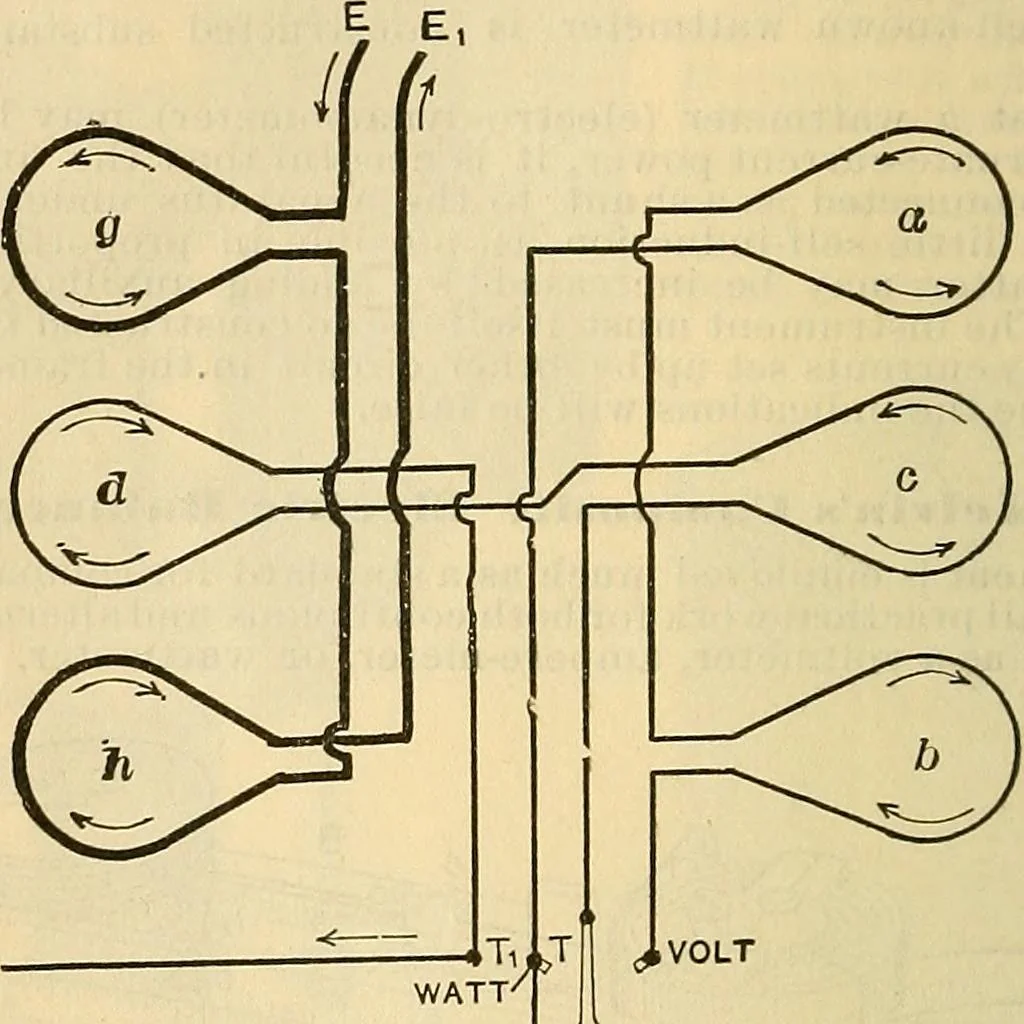

s c and d of the balance are suspended equidistant between theright and left pairs of coils, with planes parallel to their planes, and centerscoinciding with their centers. To Set the Balance. — Level the instrument with the adjustable legs, turnthe stop screws back out of contact with the cross… … —wwwwy^ h Fig. 32. Diagram of the Kelvin Composite Balance. in the preceding diagram, the resistance terminal to T and the other ter-minal to T, ; throw the switch Hto the right to the volt contact. One of the weights v ?«,, v w.,, v wM is then used on the scale beam, and ais balance obtained. The…
