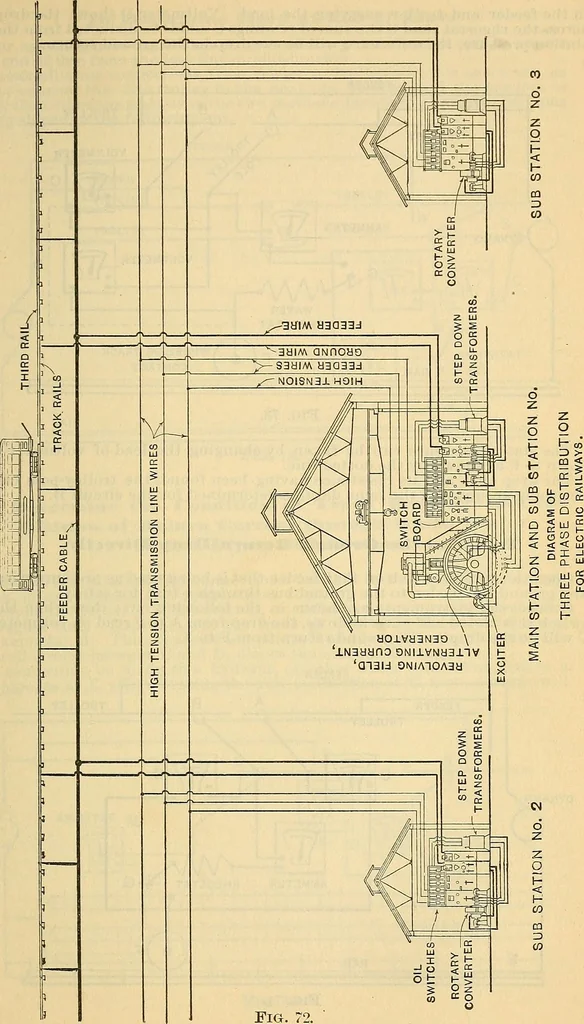

the section of conductor which it is desired to test, where a line circuit-breaker divides the sections. The instruments are then connected as shown in Fig. 72. It is clear now that if the switch G be closed, current will flow throughthe rheostat and be measured by the ammeter. We now have the… … 518 ELECTRIC STREET RAILWAYS. in the feeder and trolley carrying the load. Voltmeter D shows the dropacross the rheostat; and if the sum of readings C and!) be deducted from thestation pressure, the difference will be the drop in the ground return.
