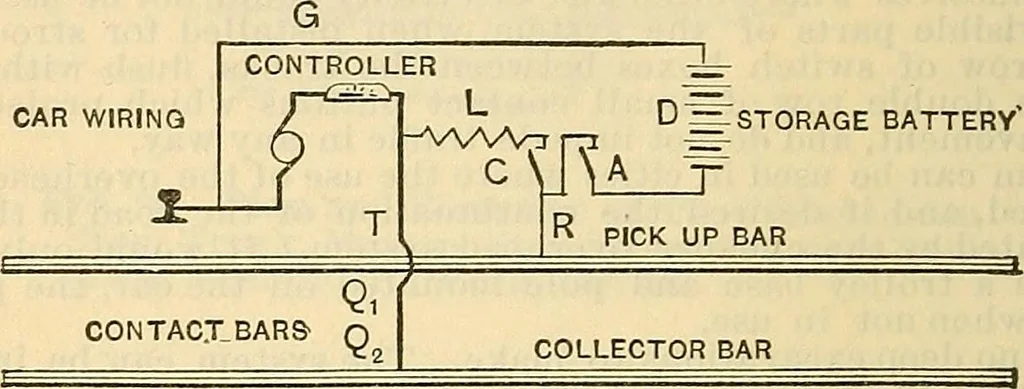

Fig. 98. Diagram of Switch Connections. CAR WIRING D =. STORAGE BATTERY … Fig. 99. Diagram of Car Connections. Electro-magnetic switches, Xl5 X2, X3., inclosed in water-tight casings,are installed at intervals of about 15 feet along the track to be operated.Each switch is provided with two windings, I and H, which are connectedby the wires N and M to two cast-iron…
