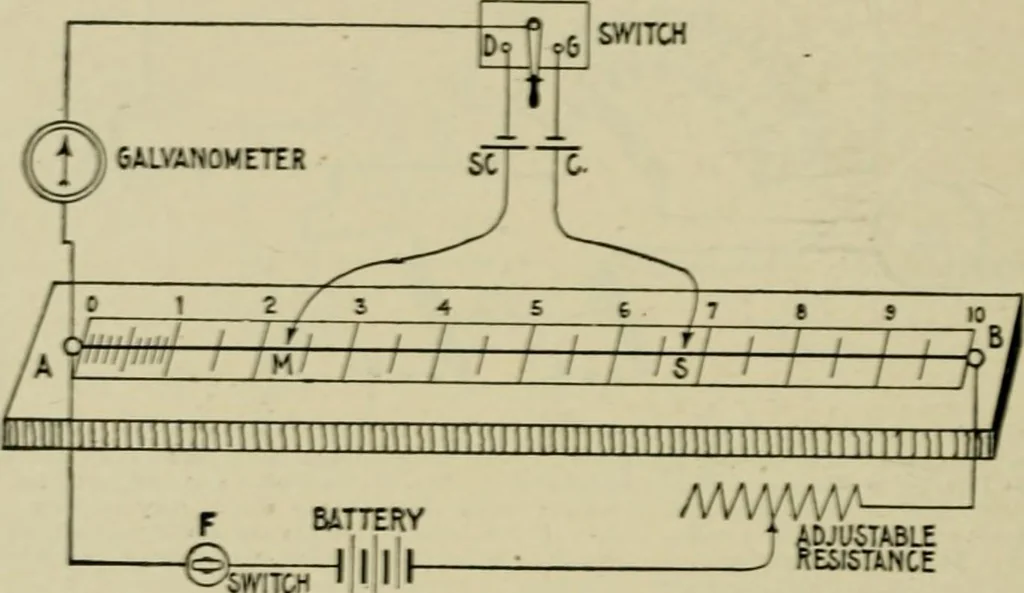

% and the othertwo the galvanometer. A three point switch connects thegalvanometer in series with the standard cell SC, or the cell tobe tested C, the circuits being completed by leads terminatingin the sliding contacts M and S. … ^^SmiCH OJUSTABLEESISTi^NCE Fig. 614.—Digram <rf potentiometer showing method of measuring the voltage of a cett.The potentaooieter is simply a high resistance wire of uniform diameter stretched betweentwo biadillt, posts, A and B, in such a way that contact can be made at its ends and alongits…
