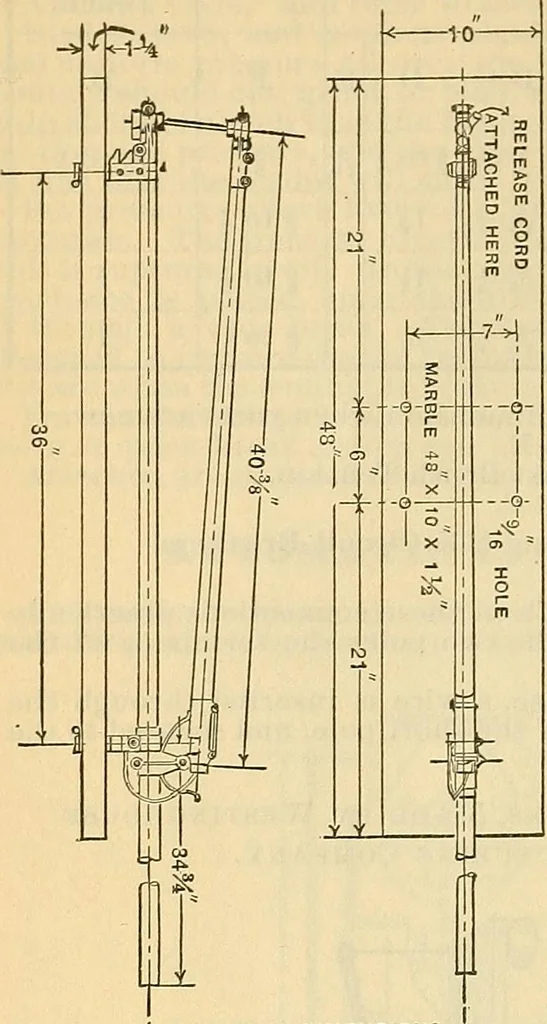

the fuse is p„.through the carbon tip on the long pole, and secured to the copper sleeve bya cam-shaped lock. The length of the fuse should be from 6 to 10 inches. The poles, after being fused, are placed in position by taking hold of thelower end of the long pole. When the fuse blows, the short… … SK, •A ^ a ^rv. ~:- M ;«y J PRINCIPAL DIMENSIONS,6000-15000 VOLTS Figs. 17 and 18. Figs. 19 and 20. ary pole, thus making a very long break. The lock cam has a long stringattached to it, by means of which the fuse can be released if desired, thuscausing the short pole to drop in the same manner as…
