Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 666

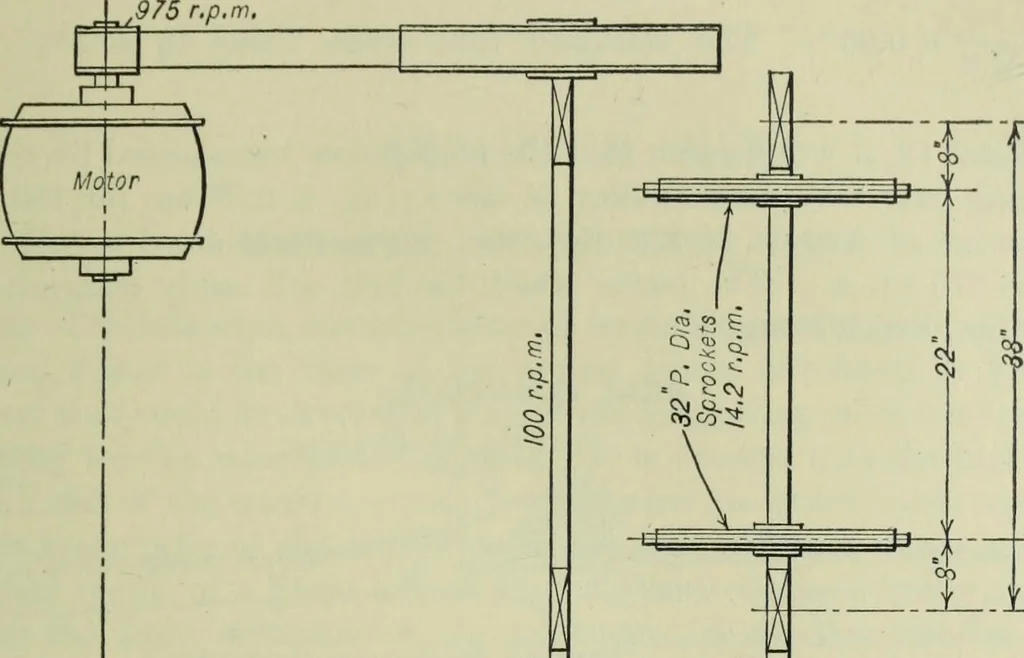

b. to betaken care of in bending by the head shaft. The unbalanced load at pitch line of sprocketsproducing the torsional moment H = 320 + 100% (for shock) = 640 lb. Bending moment B = 1600 X8 = 6,400 in. lb. is: Torsional moment T = 640 X 16 = 10,240 in. lb. From diagram Fig. 30 diameter of head…
Building · Heating · Ventilation
Internet Archive · University of Toronto, Robarts Library · Public Domain Mark 1.0. Free to use for anything.
