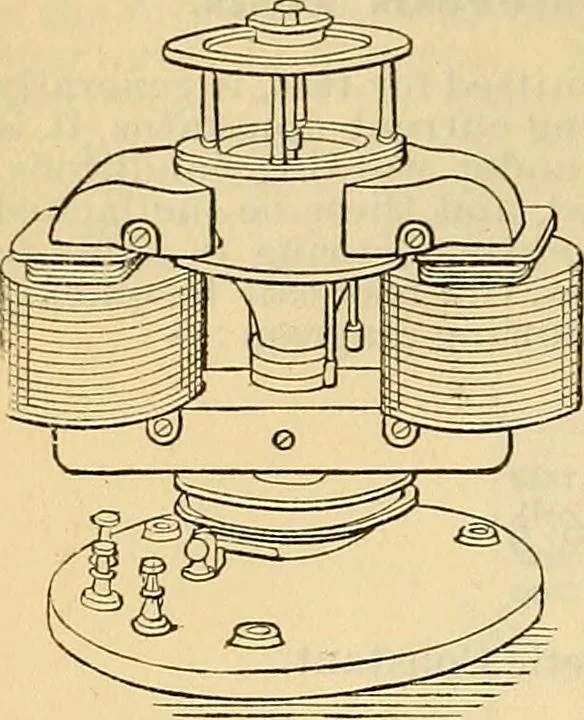

ermined by mul-tiplying the degrees distortion by a constant.A coil, so arranged that it surrounded but did not touch the rings, madecontact at its ends with two fixed brushes that rested in diametrically oppo-site positions on a two-part commutator, which revolved with a magnet.The segments were… … 1000 .\-(,o 3000 4!A\! 5000 t X) 7000 . CYCL SUO0 - c ex ) - r E :WJ 7000 0000 / 2000 - 3000 1000 Fig. 11. induction, when the brushes changed contact from one segment to the other,it is evident, the self-induction of the circuit being negligible, that themean value of the current in the circuit…
