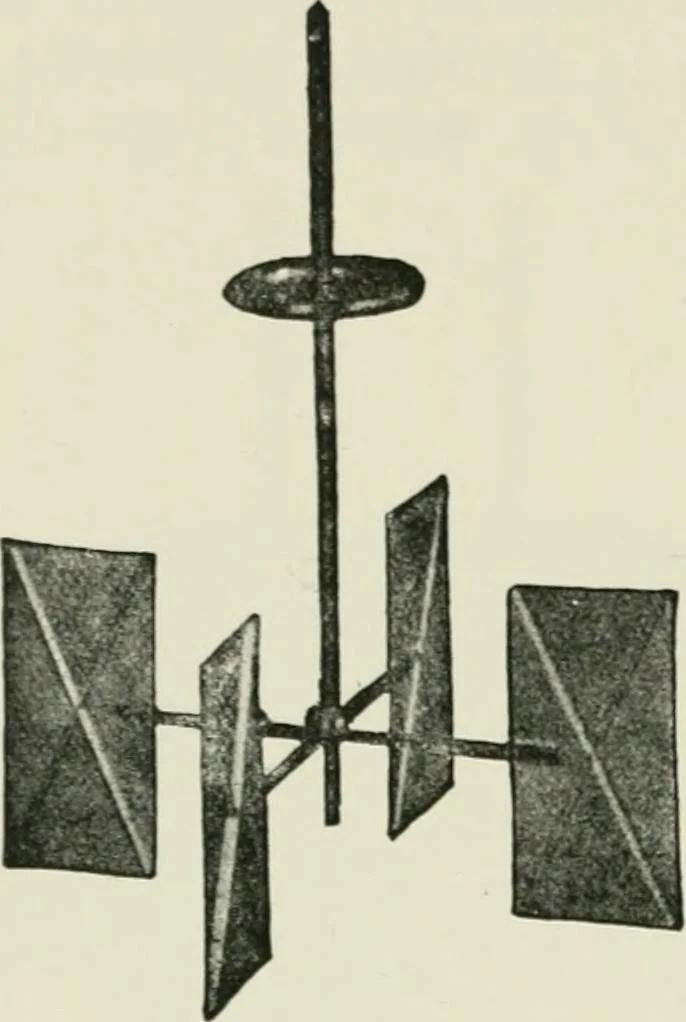

market. The Westinghouse Company make an excellent alternatingcurrent meter for non-inductive circuits (Fig. 230), invented byMr. Schallenberger. It consists essentially of a small inductionalternatinor current motor workinof against a fan brake, hence dis-penses with the troublesome commutator.… … Fig. 231Fan-Brake of Westinghouse Meter Schallenbemer Meter The meter is designed to be connected directly in series withthe lamps, and the entire current to be measured passes through a few turns of heavy wire, called the primarycoil. Inside of this, and at an angle toit, is placed a closed copper…
