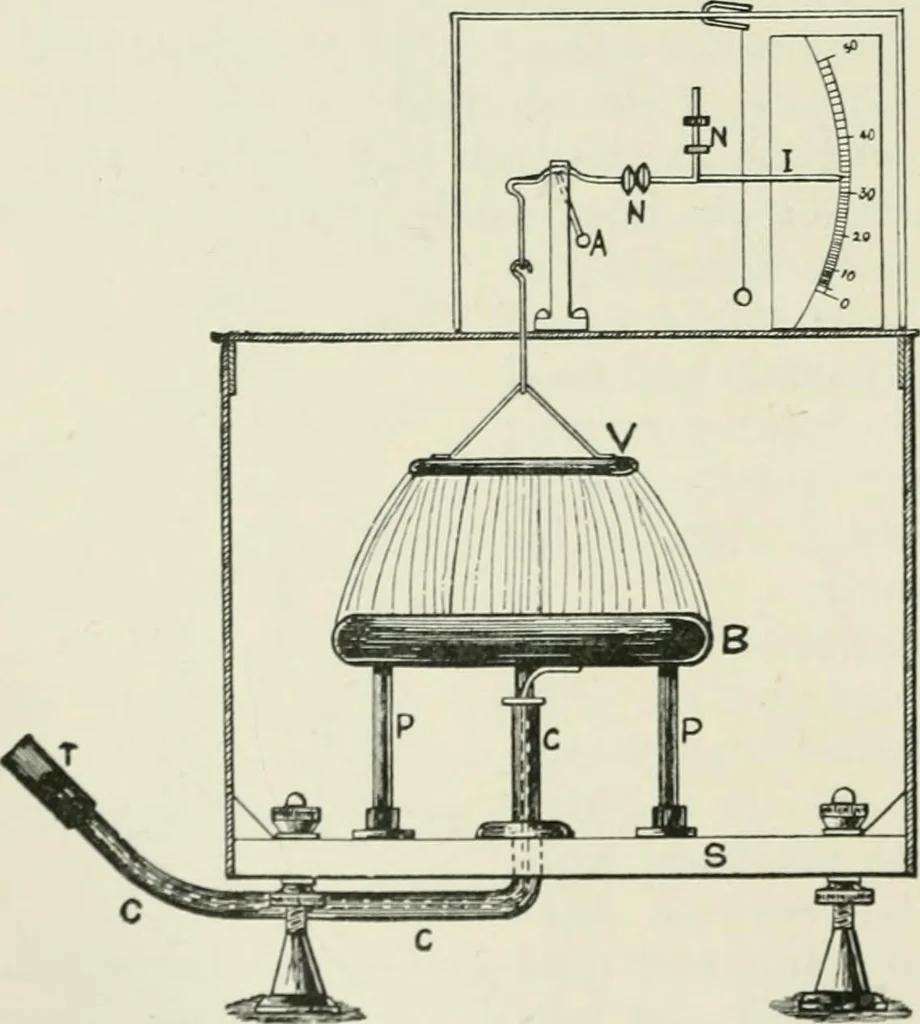

afurther development ofthis type of voltmeter tomeasure up to 100,000volts. In this instrumenta movable plate V is at-tracted by a highly in-sulated plate B connected Fig. 63—Lord Kelvins Llectrostatic Balance, showing lines tO the body whosC preSSUreof force between plates • i j i i IS to be… … Static or Condenser Instruments shown in Fig. 64, an attracted disc electrometer diagram : thedisc is hung on a beam balanced by a weight; the disc is sur-
