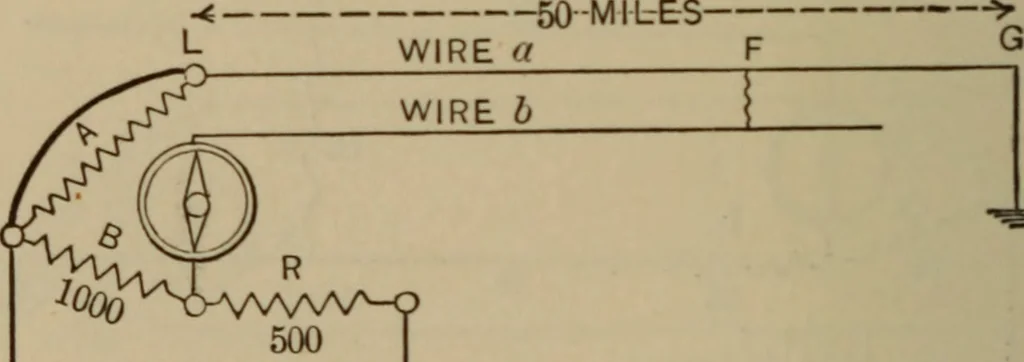

her method of locating across by employing the two crossed wires only. Inthis test it will be seen that the resistance of F isneglected, but the resistance between wire a andground at distant station figures in the result andcannot be accounted for. Earth currents, or dif-ference in potentials… … L-|i|i|i|i|i|f-4.gr. Fig. 116. In arranging for this test the next distant stationbeyond fault F is asked to ground one of the wires,and this wire is connected to point L of bridge.Arm A of bridge is then shunted out with a pieceof copper wire or else plugged up, and that ter-minal of galvanometer…
