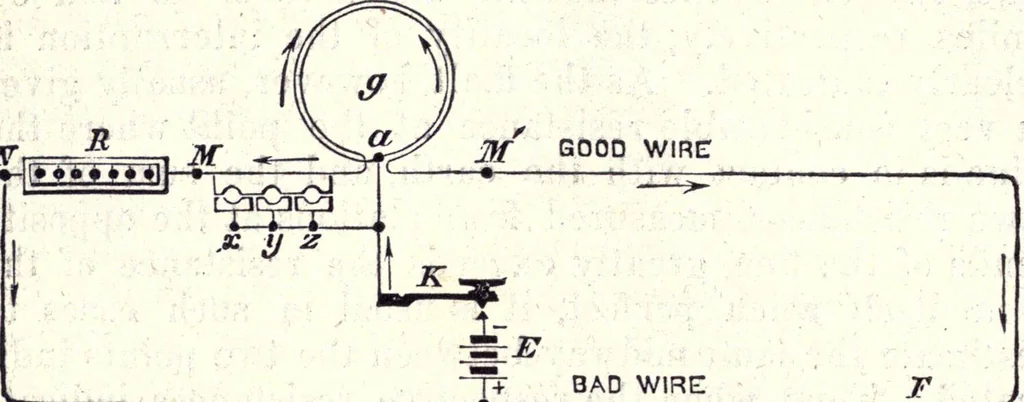

o be tested as short as possible,and have all the instruments in circuit taken out. Se-lect a good wire, similar, if possible, to the one it isrequired to test. Both these wires must then be con-nected together in a loop, at the nearest available sta-tion beyond the fault, without ground… … Connect one end of the loop to the + pole of thebattery E, and the other to one of the galvanometerwires at M. Connect also the + pole of the batterywith the resistance coils, R, at N, and the — pole ofthe battery to the key, K, and common terminal, a, ofthe galvanometer. Connect the remaining…
