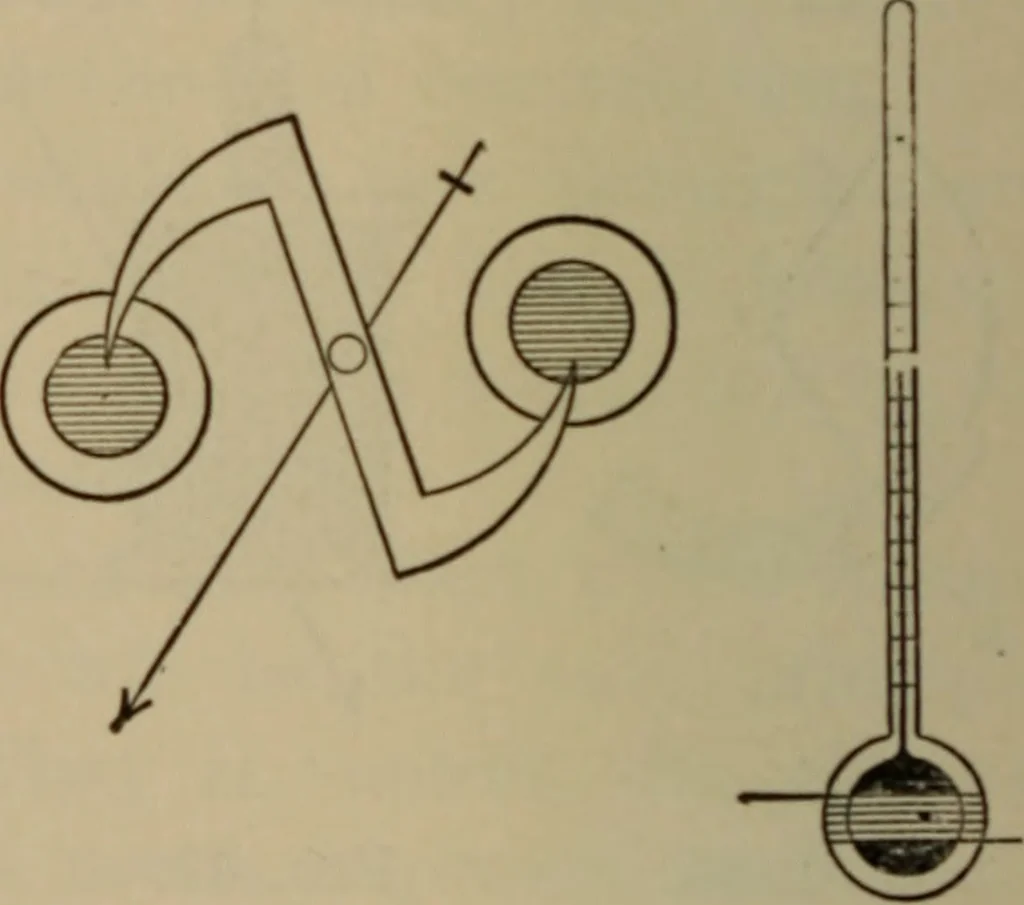

50 the attraction is between two curvedarmatures and the two poles of an electro magnet. 62 ELECTRICAL INSTRUMENTS. This is purely magnetic attraction and is counter-balanced by the force of gravity, a spring, or anadjustable weight. The heating effects of current are used in Fig.51 where a coil of… … Fig. 49. Fig. 50. Fig. 51. ciple illustrated in Fig. 47, the lower end of thearmature working in a glass tube filled with oil.This steadies the moving system and renders itdead beat. The armature is not rigidly attachedto the pointer shaft, but has a flexible connectionof silk. The shaft itself…
