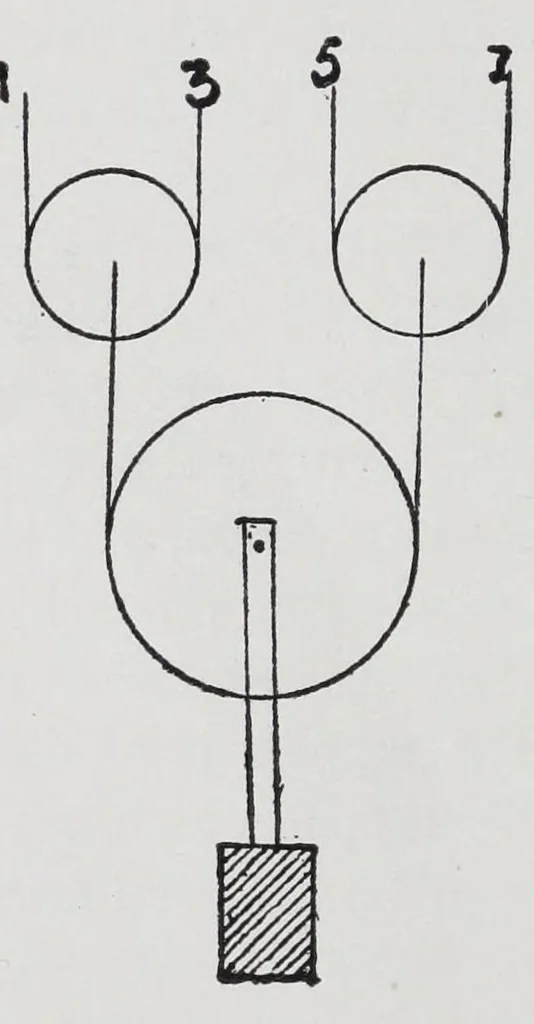

An illustration from A practical treatise on weaving and designing of textile fabrics : with chapters on the principles of construction of the loom, calculations, and colour, 1885, leaf 104
being substantially those which have just been pointed out, first, that they shall not spread out the healds too far, nor occupy too much space in the loom, and second that each arm of the lever shall be of the same length. Of course in the case of a large number of healds being employed, it is… … Fig. 25. shown in section with the necessary rollers attached to it ; this lever has its fulcrum in the centre, and the rollers as shown attached to each end, a strap is passed round
