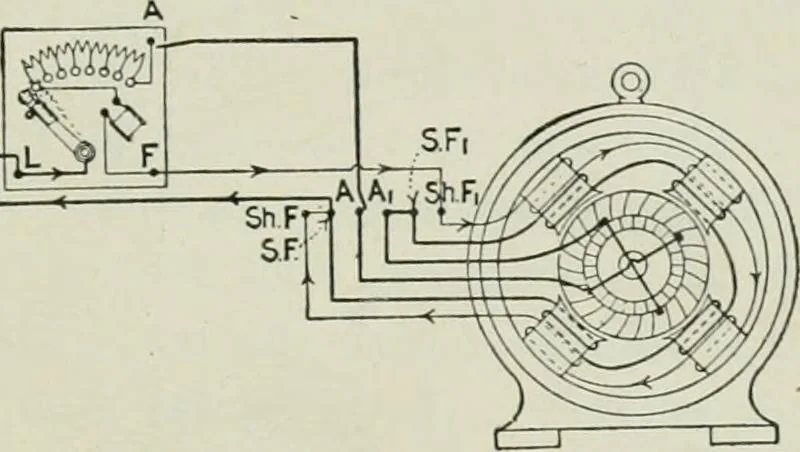

eld. In the smallmachines, when the shunt- and series-field leads are the samesize, the two fields may be determined by testing with a lamp.The lamp will burn brightly through the series field and dimlythrough the shunt field. After the motor has been connectedit is advisable to make a test to… … Fig. 287.—Armature lead disconnected to test connections of compound-wound motor. Fig. 287; then close the switch and move the starting arm tothe first contact, as shown by the dotted line. If the connec-tions have been made properly, and the switch is opened orthe starting-box arm allowed to drop…
