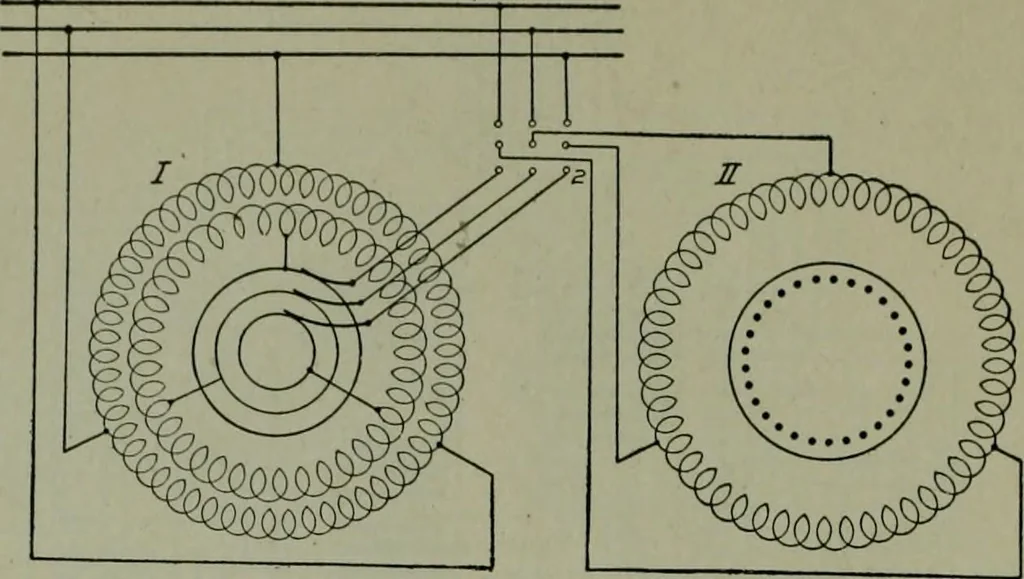

7.»H fJ STAftTNO CONTROLLER. ■lly-AA-yA^i TO 2 Phase motor Fig. 17J.—Connections of a six-point auto-starter for two-phase induction motor, 1000 to 2000 volts. 110 WIRING DIAGRAMS OF ELECTRICAL APPARATUS … Fig. 180.—Two induction motors connected in tandem or concatenation. The primarymotor must have a wound secondary. The second motor may have either a wound secondaryor a squirrel-cage secondary. Both motors are mounted on the same shaft. When connectedin parallel across the line, the motors run at…
