Electrical machinery; a practical study course on installation, operation and maintenance (1921)
Annett, Fred Anzley · New York [etc.] McGraw-Hill book company · leaf 320

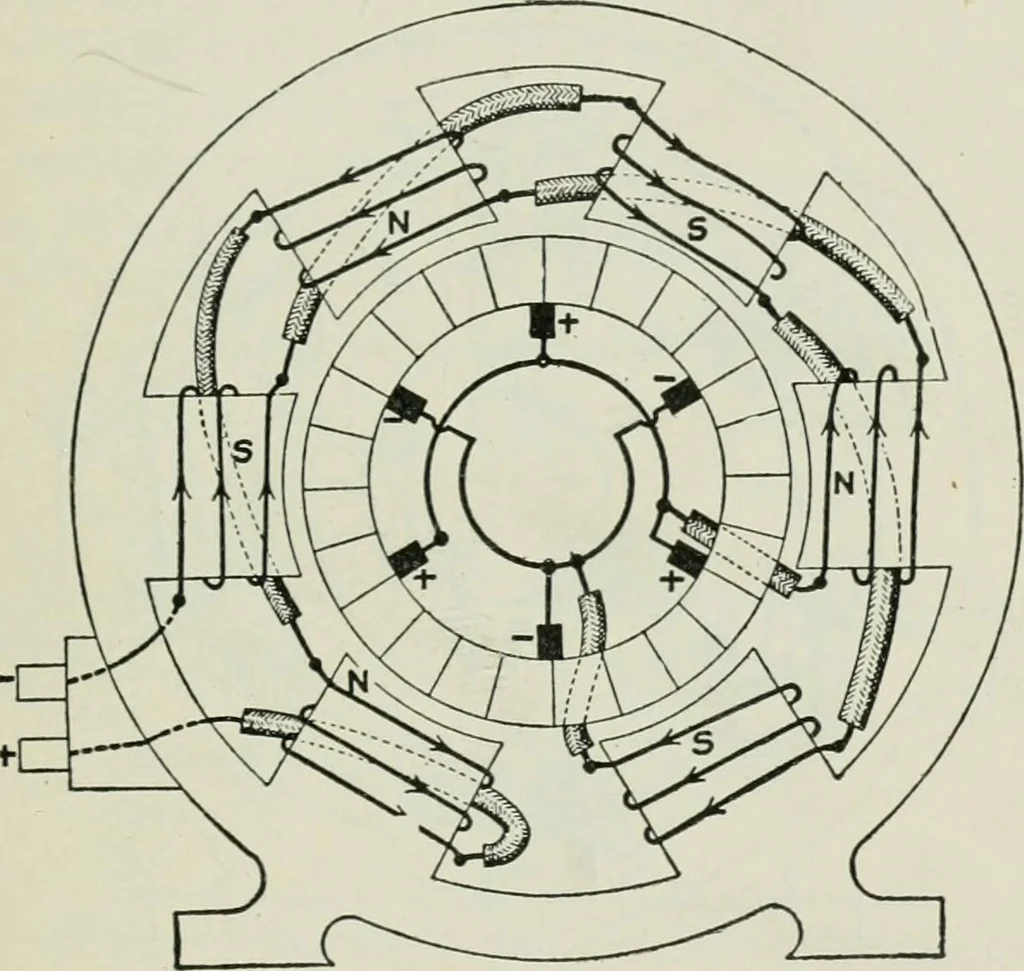

IN PARALLEL 303 to connect alternate series-field windings in series somewhatas shown in Fig. 336, which represents the connections for theseries-field windings of a six-pole compound-wound three-wiregenerator. (The shunt-field windings are not shown.) Thediscussion in reference to series windings… … Fig. 336.—Series winding on three-wire generator. otherwise there w^ould be times when too little current wouldflow through them and others when there would be too much.The distribution of the windings can be accomplished in thesame manner as with the series windings; namely, by connect-ing…
Electric machinery
