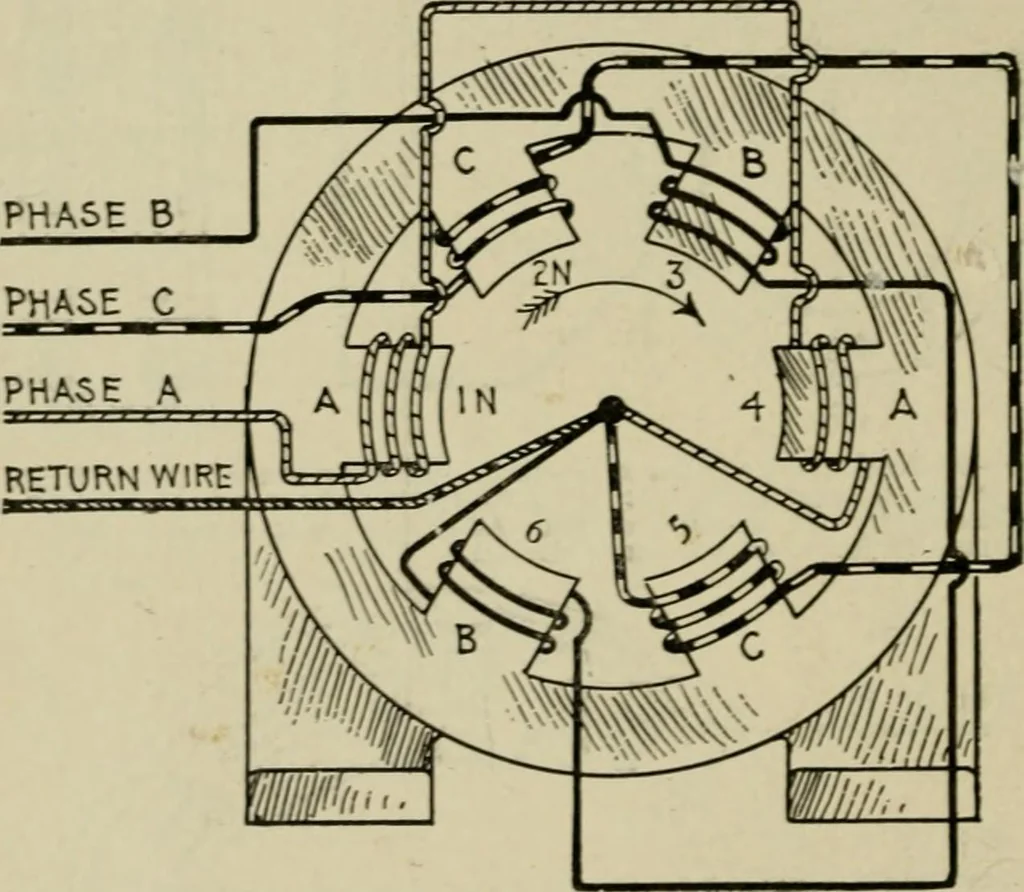

Fig. 1.6S6.—Diagram of three phase, four pole Y connected field winding. 1,306 HAWKINS ELECTRICITY At the instant when the current a, flowing in at A, is at its maximum,two currents b and c, each one-half the value of a, will flow out B and C,thus producing a negative pole at A and a positive pole… … Pig. 1.687.—Production of a rotating magnetic field in a two pole three phase motor. Inorder to obtain a uniformly rotating magnetic field, it is necessary to arrange the phasewindings in the direction of rotation, in the sequence ACB, not ABC as indicated on themagnets. Thus poles 1 and 4 are…
