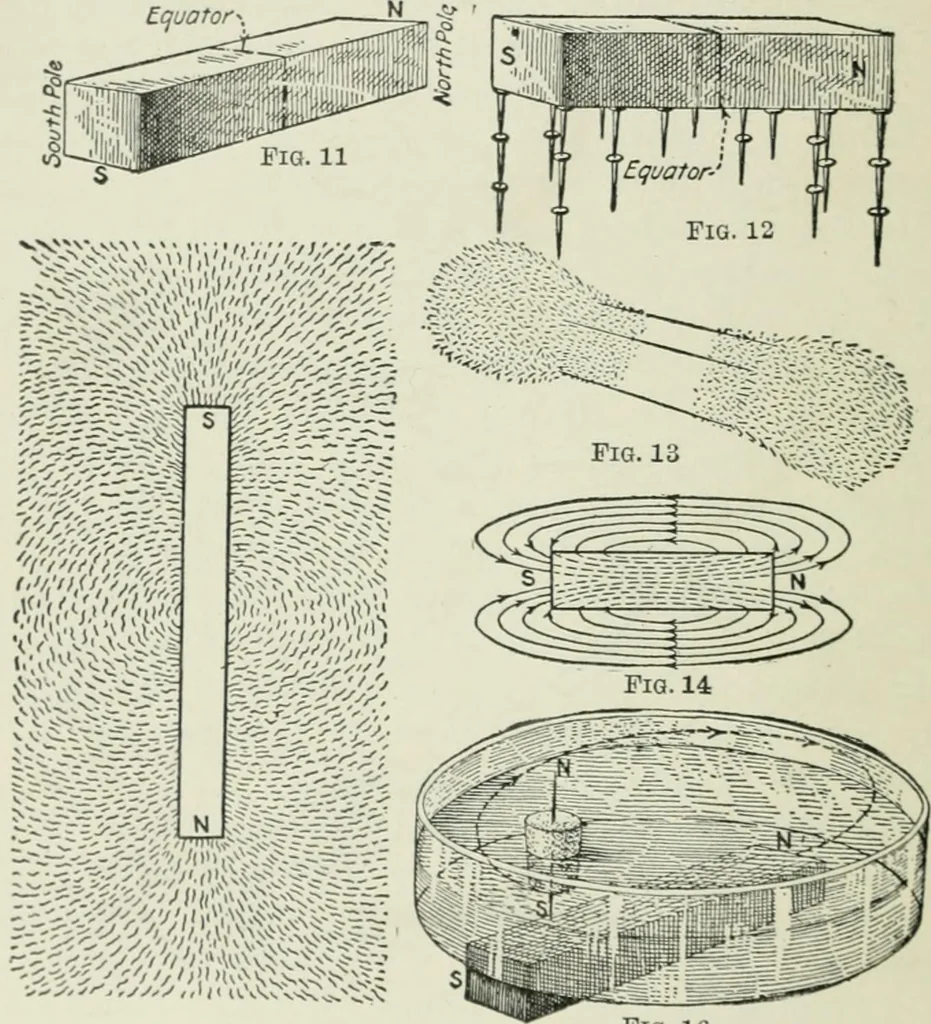

a magnet is known by various names, such as magnetic field,magnetic flux, flux from the magnet or field poles, and linesof force, but they all mean one and the same thing. 16 ELECT RICA L MA CHINERY Another method of determining the direction of a mag-netic field is illustrated in Fig. 16. A… … Fia. 15 ^^a-16 Figs. 11 to Ifi.—Show the distribution and diroctioii of a niajmetic field. of the magnet, it will be found that instead of the cork withthe needle floating along the axis of the magnet to the Npole, it will take a curved path like that indicated in thefigure. This is similar to the…
