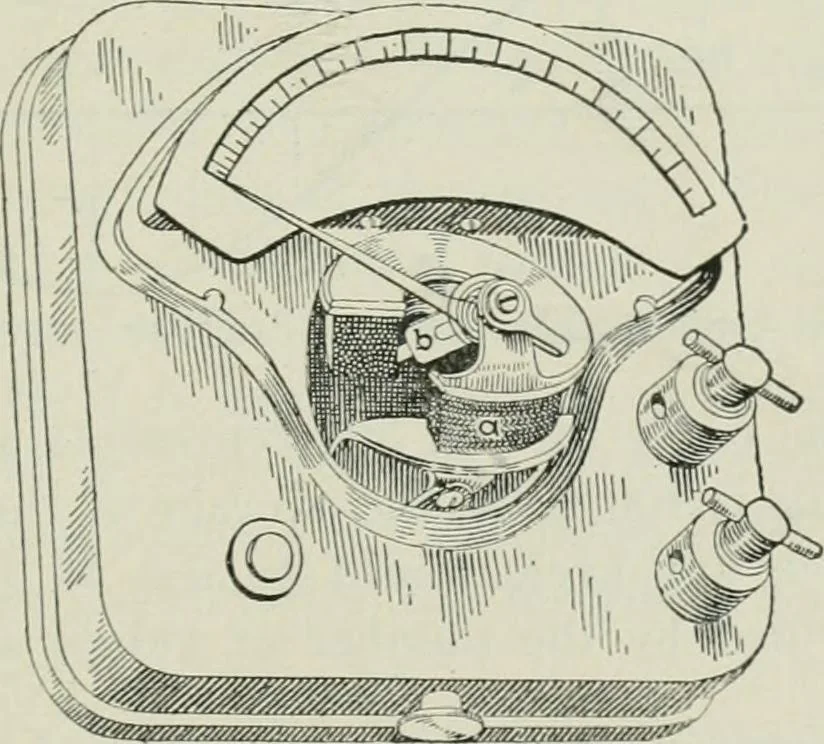

Fig. 362.—D^-namometer type of instrument. one direction and will cause it to move through a greater or less distance depending upon the magnitude of the current. Another type of alternating-current instrument is the one illustrated in Fig. 363, known as the inclined-coil type. A … Fie. 363.—Inclined-eoil type of instrument. soft-iron vane h is mounted on a shaft, which is perpendicularto the base of the instrument. Vane h is mounted on theshaft at about a 45-dcg. angle, and the coil a inclines at a45-deg. angle with the base. When current flows through the 324 ELECTRICAL…
