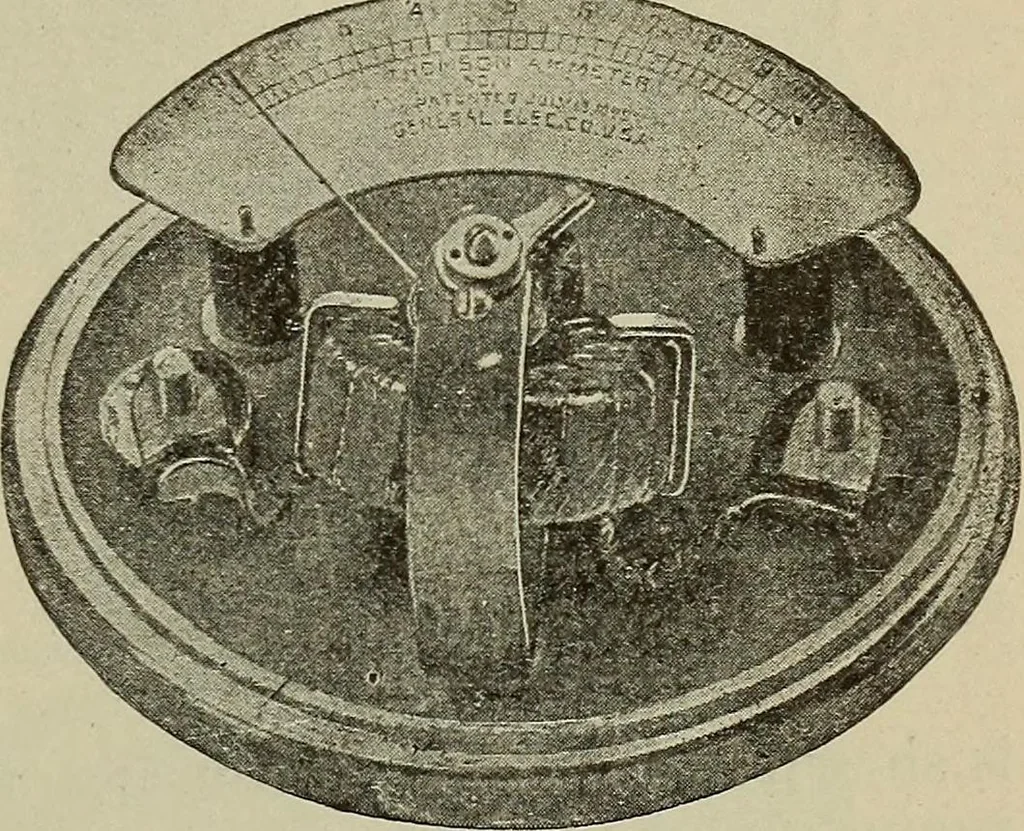

homson Inclined Coil Ammeter. —In many typesof ammeters, beside tlie above, the magnetic body is apiece of iron, rather than a magnet, and placed so that itwill gradually move to ., accommodate throughitself the lines of forceof the magnetising coil.The Thomson inclinedcoil ammeter utilizes… … Fig. 192.—Thomson Inclined Coil Ammeter. mounted with its axis inclined to the horizontal. Through thecentre of the coil is passed a vertical shaft mounted betweenjewel centres and carrying a pointer at its upper end, A smalliron vane, A, is attached to the shaft at an angle, and the movable
