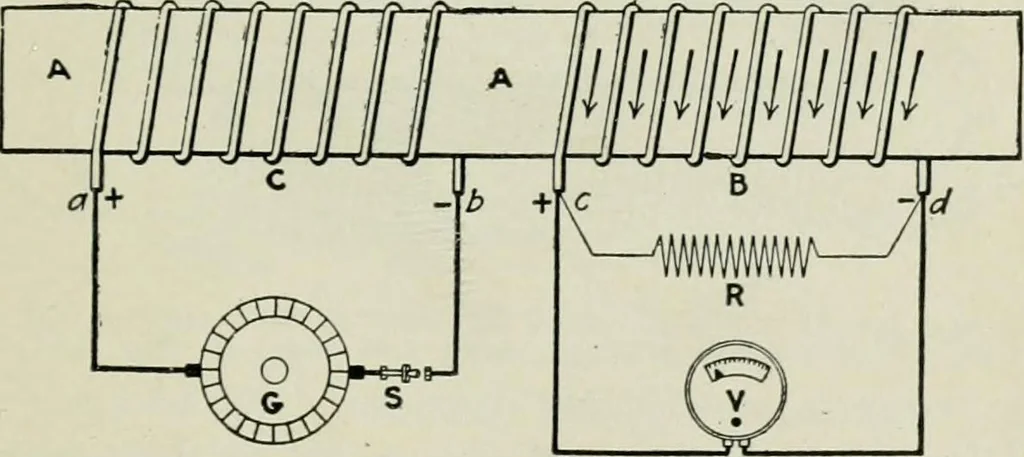

is discharged at the top ofthe case. In this way the heat of the winding and core isdissipated. Principles of Transformer Operation.—The principleupon which transformers operate is known as mutual induc-tance and was explained in Fig. 187, Chapter XII. Here itwas shown that if a conductor was in… … Fig. 438.—Two coils on iron core. This principle is enlarged upon in Fig. 438; here two coils Band C are wound on an iron core A. Coil C is connected to asource of direct current and at the moment the switch S isclosed, a current flows through coil C, causing A to become amagnet. The magnetic field…
