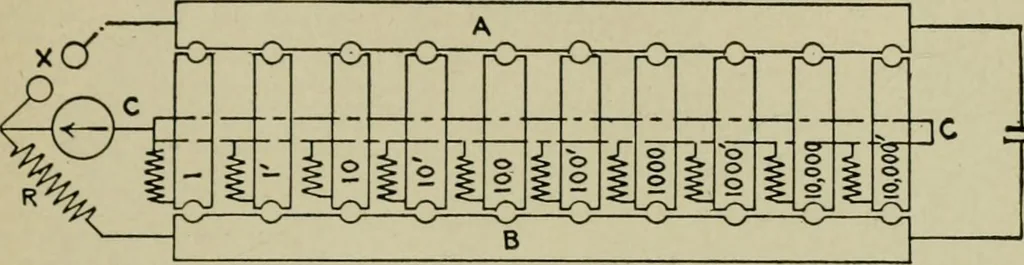

e hundreds place and so on. Each series of coils of thesame value is designated a decade. The connections are usuallymade as shown in figs. 570 and 571. It is apparent from the figure that any value in any one decade canbe obtained by inserting between a bar and a block, only one plug;moreover if… … Fig. 572—Two plug arrangement of ratio coils. Each of the ratio coils has one of its terminalsconnected to a common center which corresponds to the block marked C in the figure. Theother terminal of each coil is connected to an individual block, there being one block foreach coil. The bar B on one…
