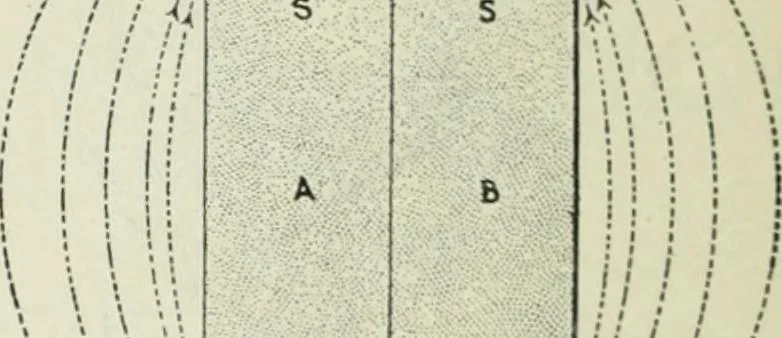

the rotor core and go to the adjacent S pole, as shown inFig. 453. This condition is illustrated with bar magnets inFig. 455. Here the two similar magnets A and B are placedso that their like poles are adjacent to each other, and sincelike poles repel, the flux from one N pole will be pushed… … ---:^- \^-^. ./ Fiu. 454 Fig. 455 Fig. 4.54.—Shows magnetic conditions in Fig. 452.Fig. 455.—Shows magnetic conditions in Fig. 453. paring Figs. 452 and 454 with Figs. 453 and 455, it will beseen that where the centers of tiie magnetic fields are at thecenters of A i)olepieccs in Figs. 452 and 454,…
