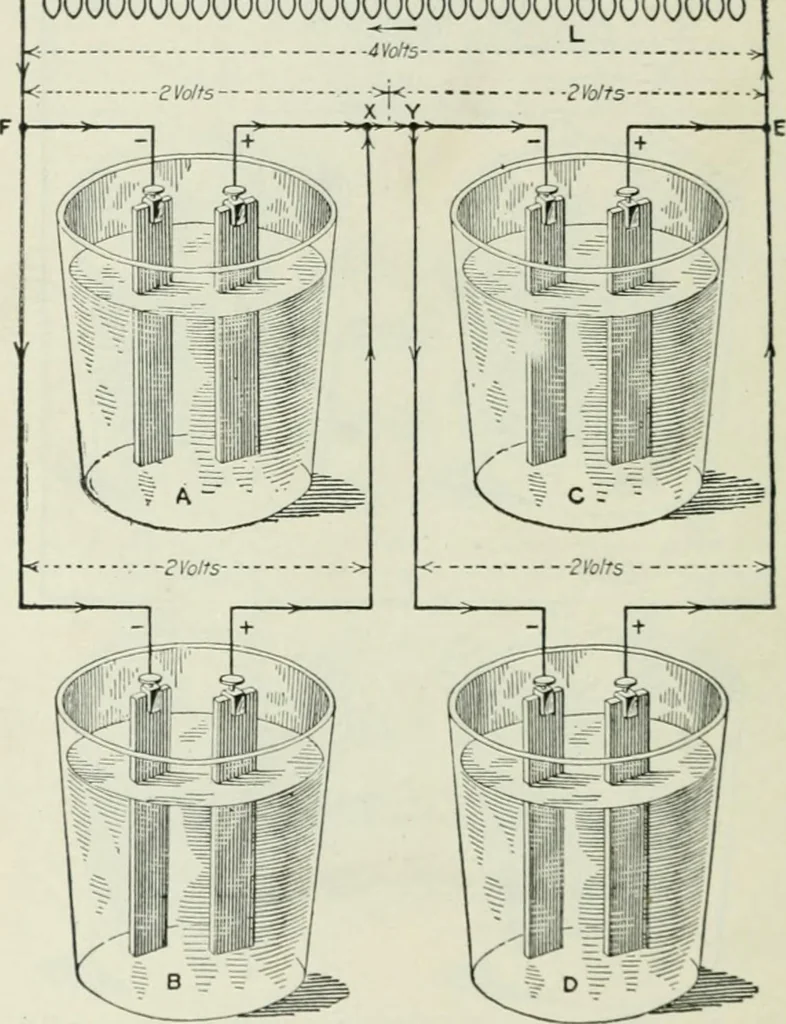

B respectively. By comparingFig. 60 with Fig. 53 it will be seen that the two groups inFig. 60 are connected the same as the individual cells are inFig. 53. In this way cells can be grouped to obtain any 46 ELECTRICAL MACHINERY voltage or current capacity desired, depending upon thenumber of cells… … Fig. nl.—Four battery cells connected parallel-series. connected in parallel, also cells ( and D. Then the twogroups are connected in series. It will be seen that if theconnection XY is removed, the grouping of .4. and B, and Cand D, will be tlie same as that in Fig. 53. The voltagebetween the…
