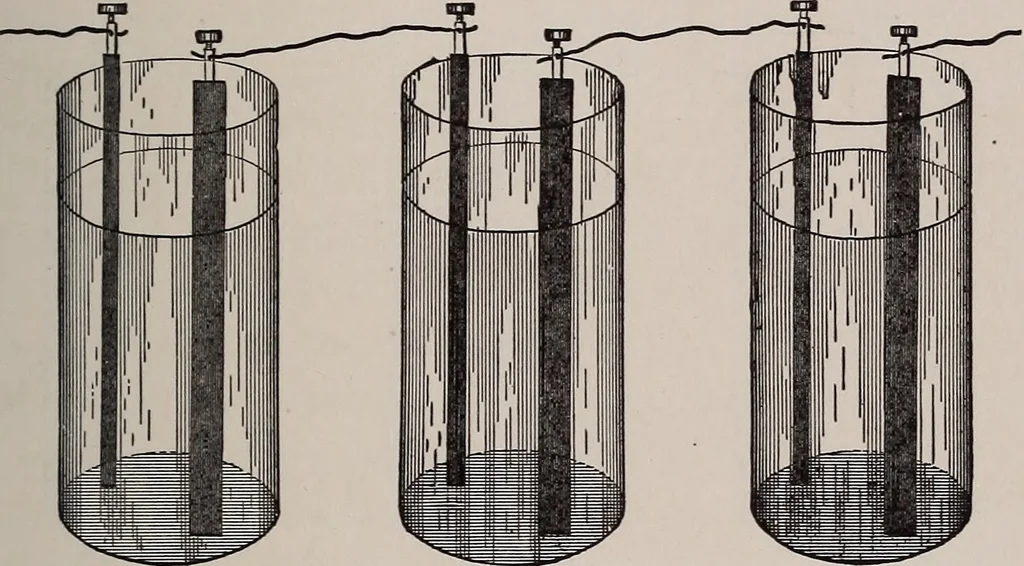

Fig. 30. ELECTRIC BATTERIES. 75 with conductors, which are usually copper wires. A bat-tery thus formed may consist of any number of cells re-quired for the work for which it is intended, from twoto several hundred; but they should all be of the samekind, as it is not advisable to have cells of… … Fig. 31. generating electrode of each cell is connected with theconducting electrode of the adjacent cell; and in theparallel method, illustrated by Fig. 32, all the generatingelectrodes are connected together and likewise all theconducting electrodes. The quantity of electric energy generated is…
