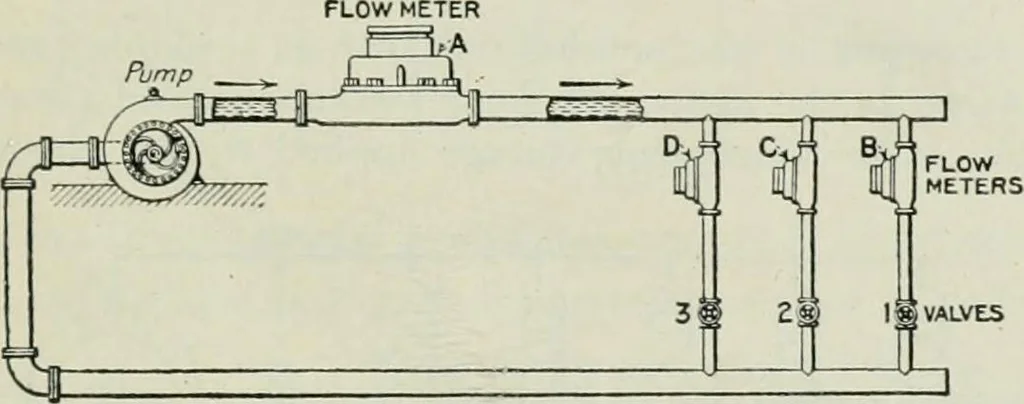

owing in the branch of the circuit that it is connected in, that is, thecurrent flowing through Ri, or 40 amperes; ammeter C will read 25 amperes,the current passing through Ri] ammeter D will read 18 amperes, the cur-rent flowing in Rs] and ammeter A will read the total current flowingin the… … Fig. 81.—Water analogy of Fig. 80. is shown with its discharge and intake connected together in a pipe system.The three branch circuits, 1, 2 and 3, Fig. 81, represent respectively,Ri, Ri and Rs, Fig. 80. The flow meters ^4, B, C and D in the latteirepresent respectively, the ammeters A, B, C and D…
