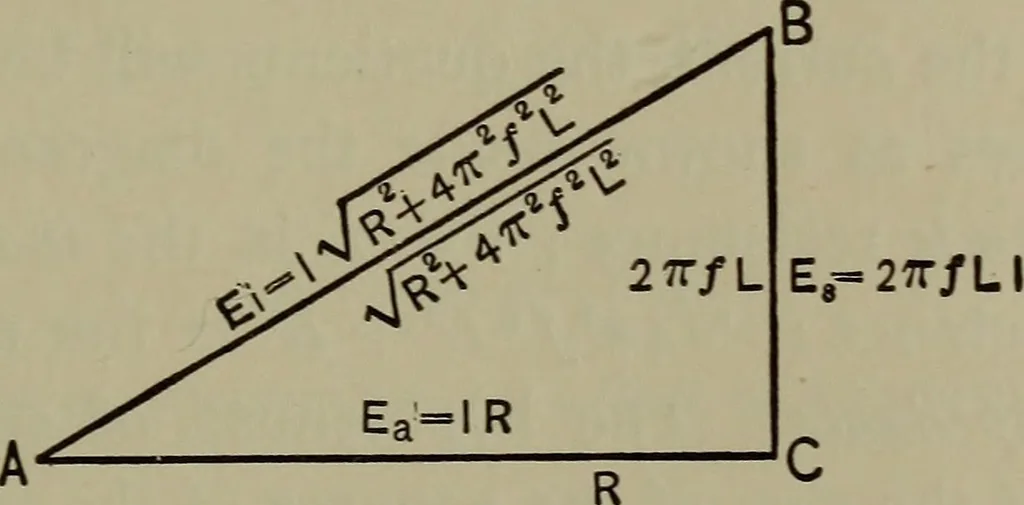

pressure is pro-portional to the angular velocity or displacement of the coilin which the induction takes place, or to 2 7r/,/being thefrequency; it is also proportional to the coefficient of self-induction, a quantity depending upon the position, winding,etc., of the coil itself. Hence we can… … Fig. 24. The relation of the different quantities in an inductivecircuit may be expressed by a diagram, Fig. 24. The 236 ELECTRICAL AND MAGNETIC CALCULATIONS. counter E.M.F. is represented by the vertical CB, and theactive by AC, the impressed E{ being the hypotenuse ofthe triangle of which the two…
