Dynamos and motors; a text book for colleges and technical schools (1911)
Franklin, William S. (William Suddards), 1863-1930, Esty, William, 1868-1928 · New York The Macmillan company · leaf 264

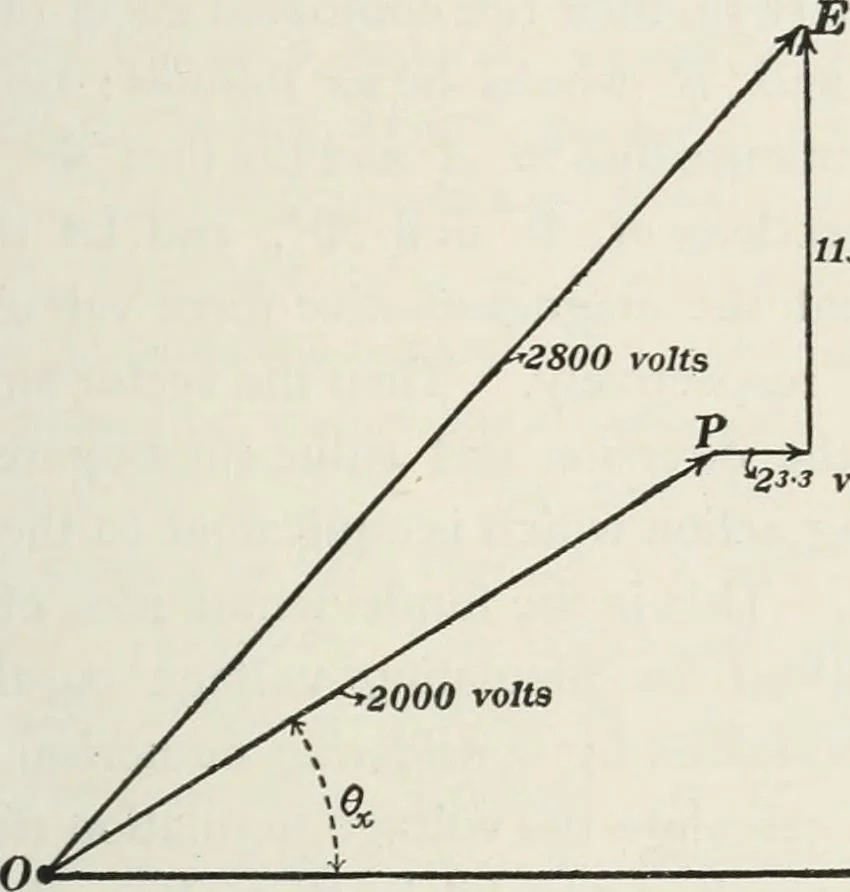

he THE ALTERNATOR AS A GENERATOR. 253 armature at full load is 23.3 volts. This Rl drop is in phasewith the current and therefore in phase with the terminal voltage,since the power factor of the receiving circuit is assumed to beunity, so that the sum of the RI drop and the terminal voltageis… … 23-3 volts =iRl >/ Fig. 187. tive force, that is, the electromotive force which is induced by thefield flux 4>, is equal to 1/(2,023.3)^-}-(1,150) or 2,327 volts,which is of course the value to which the terminal voltage wouldrise if the current output were reduced to zero. Thereforethe…
Dynamos · Electric motors
Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
