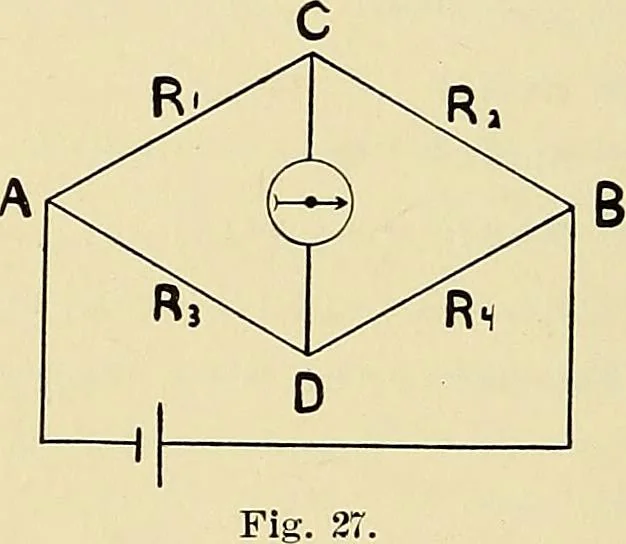

n fig. 27, where A C, C B, A D and D B arefour conductors of resistance R^, R3, etc., and joined together as shownacross one pair of opposite joint points is a galvanometer, G, while a bat-tery, B, is laid across the other two, A and B. It can be shown that if thefour resistances A C, C B, etc., be… … The Wire, Meter, or ^lide Bridge as it is variouslycalled, is one of the simplest forms of the Wheatstones Bridge. The twoinstances R3 and R4 of fig. 27 are replaced by a straight and uniform wireA B whose resistance, of course, is proportional to its length. The galvan-ometer terminal is a form of…
