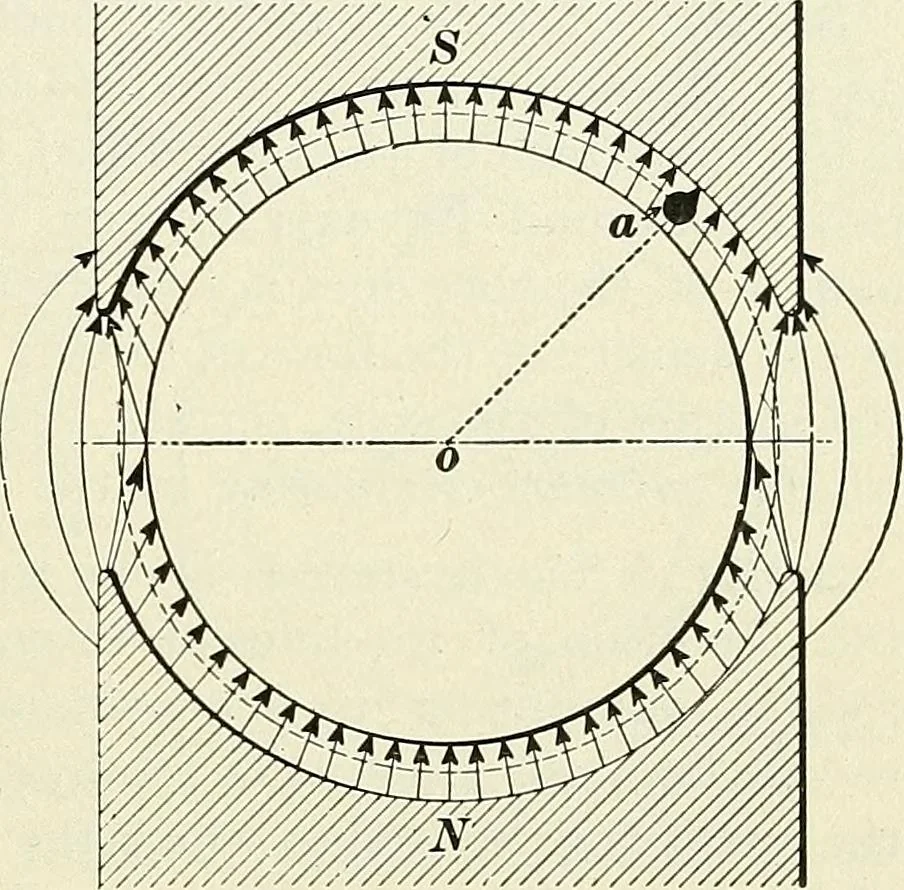

tual distribution of the lines of force will be aboutas represented in Fig.1137. It will be notedthat some of the linesof force do not pass intothe core at all, and areeven entirely outsidethe path of the con-ductor. These leakagelines (see Art. 2415)are always present inany magnetic circuitwhich… … 3049. If the lines of force in the air-gap were abso-lutely radial and of uniform density throughout, the direc-tion of the motion of a conductor moving through this air-gap would at any instant be at right angles to the lines offorce, and (assuming a constant velocity) the E. M. F.would be…
