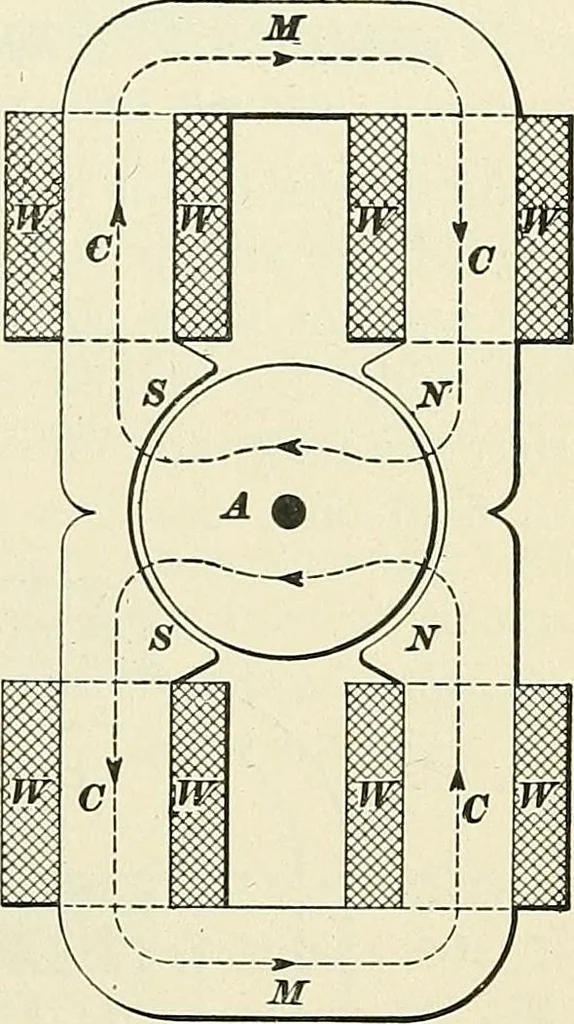

C, C, C, C) vertical. The Westonand the Schuyler arc machines use fig. US? the same form of field-magnet, but with the field coreshorizontal, and it has also been used in this same positionfor various special machines built by the General ElectricCo. and others. The smaller sizes of the Wood arc… … 2026 APPLIED ELECTRICITY. having its bearings in the yokes {MandM). The Brush arcmachine uses a similar construction, but the armature is madein the form of a ring-wound disk, and the pole faces face theend faces of the armature, as represented in the diagram. Fig.1188. The magnet in this case…
