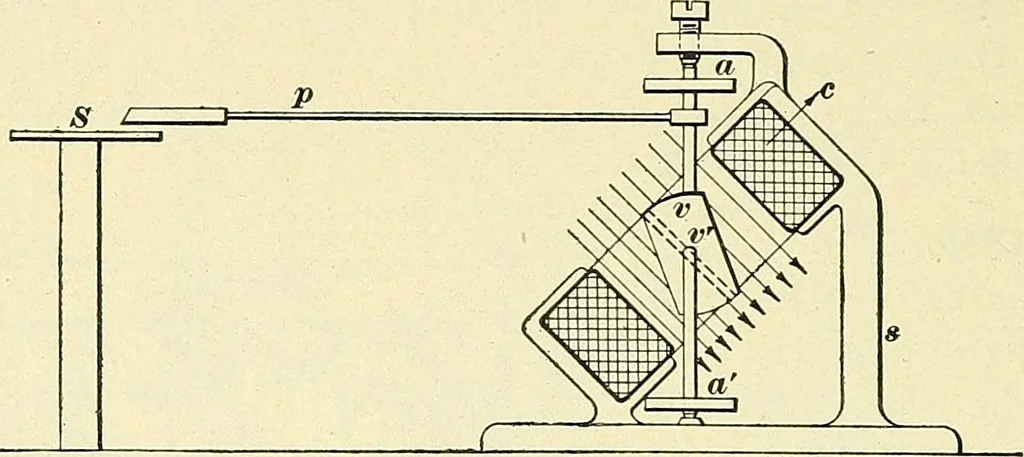

y do not resemble the two justdescribed. One of these, known as the Thomson inclined-coil instrument, is shown, in principle only, in Fig. 1499.A circular coil <:, shown in section, is mounted with its axisinclined to the horizontal. Through the center of the coilpasses a vertical shaft, which… … Fig. 1499. coil, lines of force will thread it as shown by the arrows.The iron vanejy will tend to turn so that it will lie parallelto these lines, as shown by the dotted lines v\ and in thisway a reading is obtained. 3941. The principle of another instrument in commonuse is shown in Fig. 1500. A…
