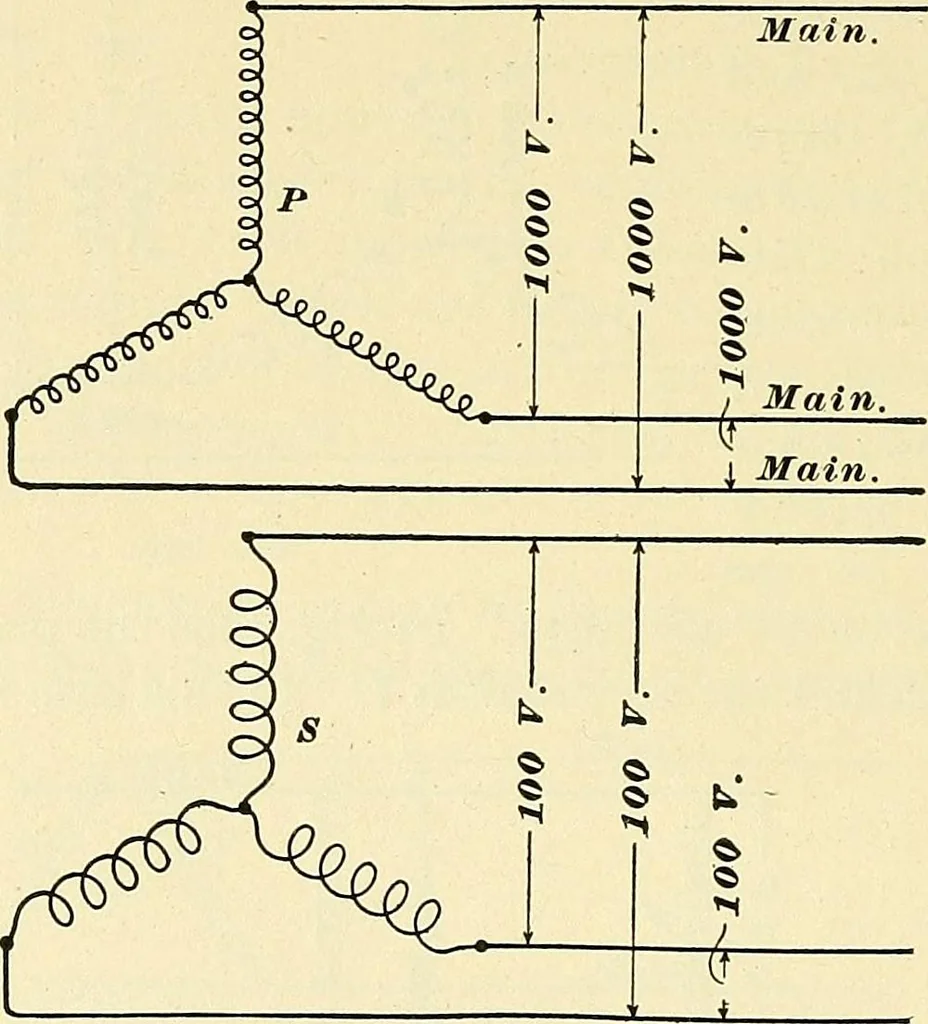

Fig. 1561. generated in each of the secondary windings will be 100;r 2708 THEORY OF ALTERNATING hence, the line pressure will be 100 4/3 or 173 volts. Thisarrangement, therefore, transforms from 1,000 volts pri-mary to 173 volts secondary. In Fig. 1561 the primariesare connected Y and the… … Fig. 1562.are connected A, the secondary line voltage will be 57.7volts. This arrangement, therefore, transforms from 1,000volts primary to 57.7 volts secondary. In Fig. 1562 bothprimary and secondary are connected Y, and it is evidentthat such an arrangement would transform from 1,000to 100. The…
