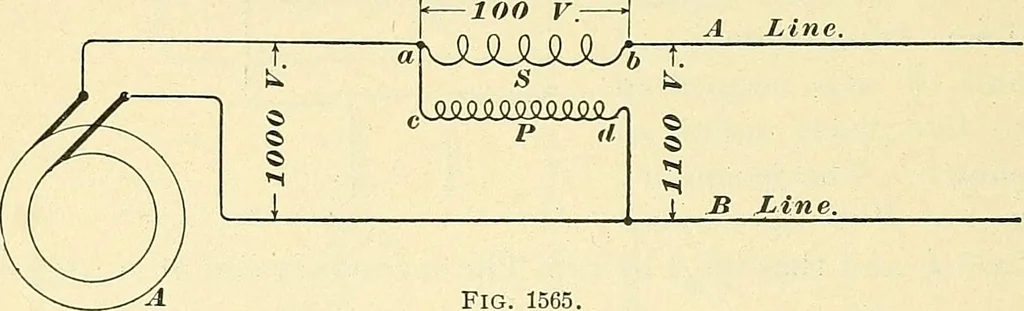

age on all thefeeders connected to it, and this would make the pressure atpoints near the station too high. By connecting a trans-former as shown in Fig. 1565, the voltage on A B may beraised without affecting any of the other feeders. Thistransformer has its primary <; <3f connected across… … Fig. 1565. either increasing or decreasing the line voltage. In the caseshown, the transformer is wound for 1,000 volts primary and100 secondary, so that the line voltage is increased from 1,000to 1,100, provided the terminals a b oi the secondary are soconnected that the secondary voltage is…
