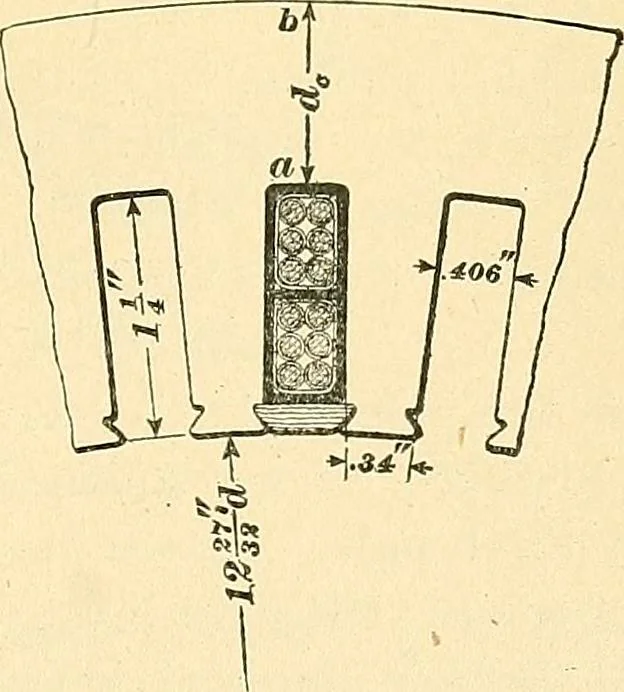

r the 4256. We must now make anumber of conductors to be placedin a slot. The depth of the slots inthe primary is usually from 2 to 3times their width. It is not wellto make theni much deeper thanthis, as it removes the bottom con-ductors too far from the surfaceof the field. We will try an… … 2882 DESIGN OF ALTERNATING the slot. Allowing ^ in. for the space taken up by thewedge, we find that the total depth of slot must be about1^ in., as shown in the figure. MAGNETIC FLUX IN POLES. 4257. By the magnetic flux A^is meant the total max-imum number of lines which flow from one pole-piece.…
