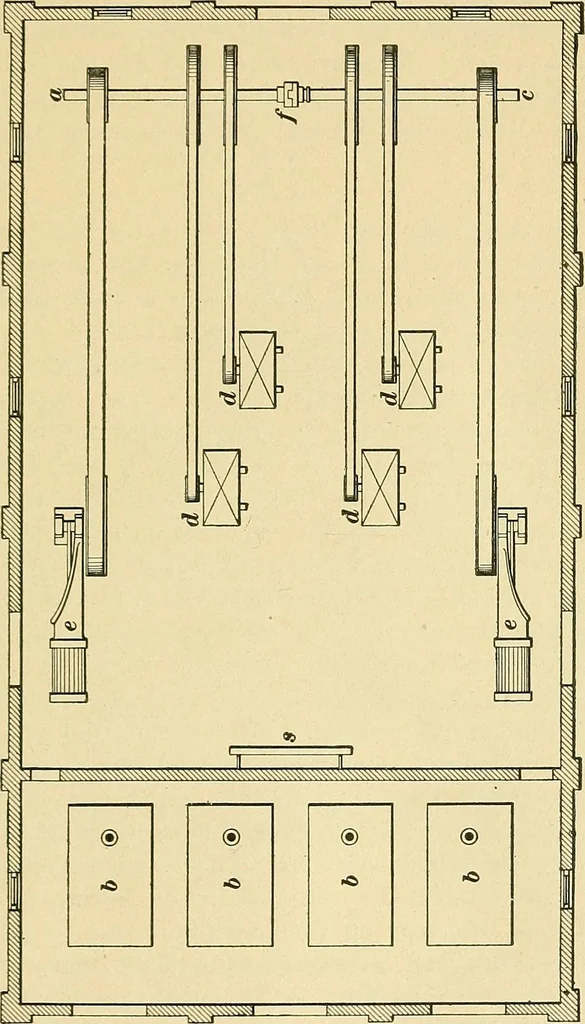

Fig. 3. 14 ELECTRIC TRANSMISSION. above the flywheels and connected by belting to the dyna-mos d. Two engines are indicated, their flywheels w, wbeing dotted in the plan. … 12. Another plan showing the general arrangement ofmachinery and boilers for a small station is given in Fig. 4.The engines e, e are placed near the walls, allowing the. 10 ELECTRIC TRANSMISSION. § 14 whole center of the room for the dynamos d. At one end isthe countershaft ac, which may be divided…
