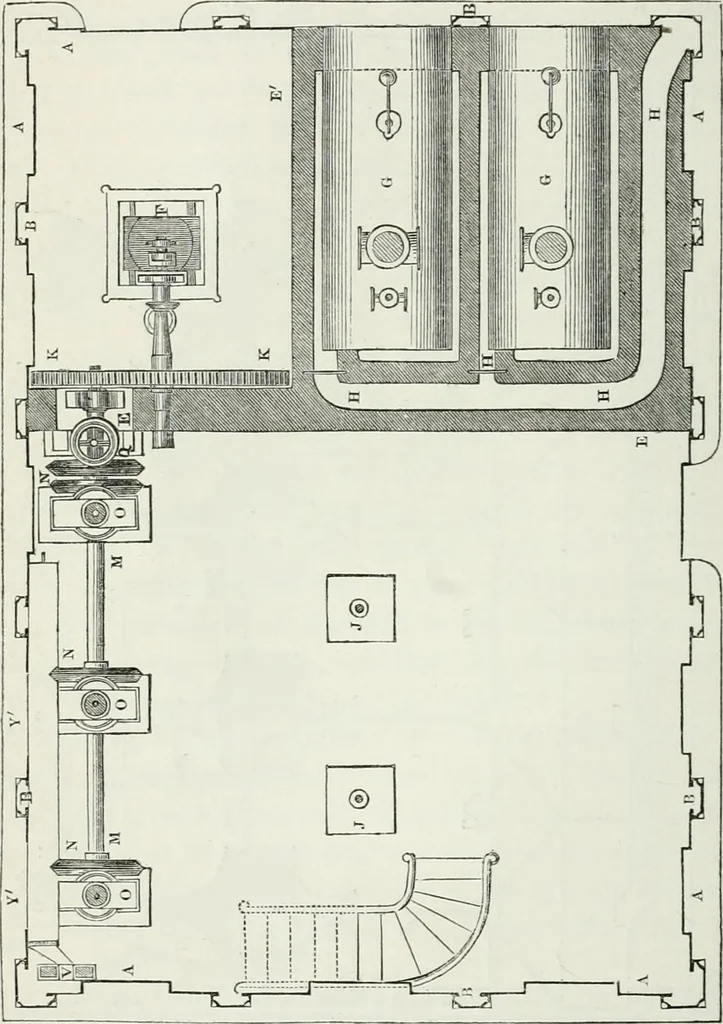

In these will be seen the driving gear, first motion wheels,and vertical shaft, by which motion is transmitted to the ma-chinery in the floors above. ]20 ON CORN MILLS. Fig. 253 is a plan of the bottom floor, showing engine andboilers, corresponding to the above, and taken on a horizontalline… … Fig. 254 is a transverse section of the entire mill, in whichare shown the garners for undressed and dressed wheat, themechanism by which it is cleaned and conveyed from theformer into the latter, the sack teagle, &c. ON IRON BUILDINGS FOR CORN MILLS. 121 Fig. 254.
