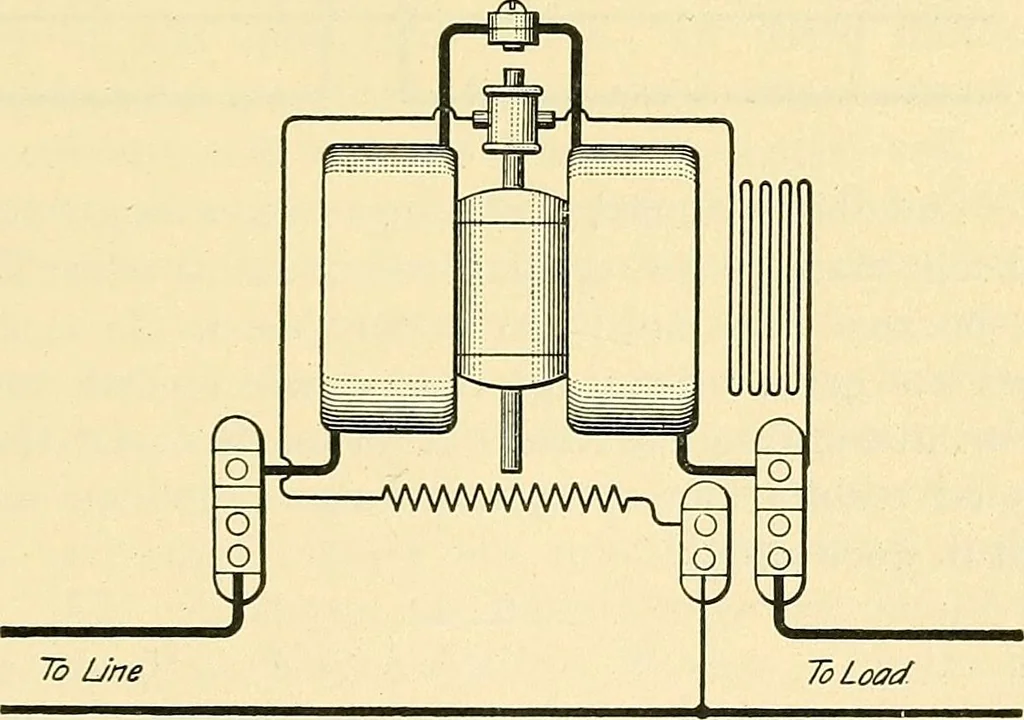

Fig. 39. The neutral wire does not enter the meter, but a tap is takenoff from it so as to put the armature across one side of the … Fig. 40. circuit. The field coils are connected in series with theoutside wires, as shown. In Fig. 39 the starting, or shunt,coil, as it is sometimes called, is a coil of fine wire in series 86 ELECTRIC TRANSMISSION. 14 with the armature and placed inside one of the field coils.It provides just…
