[Bubier], Edward Trevert, 1858- [from old catalog] · Lynn, Mass., Bubier pub. co. · leaf 54

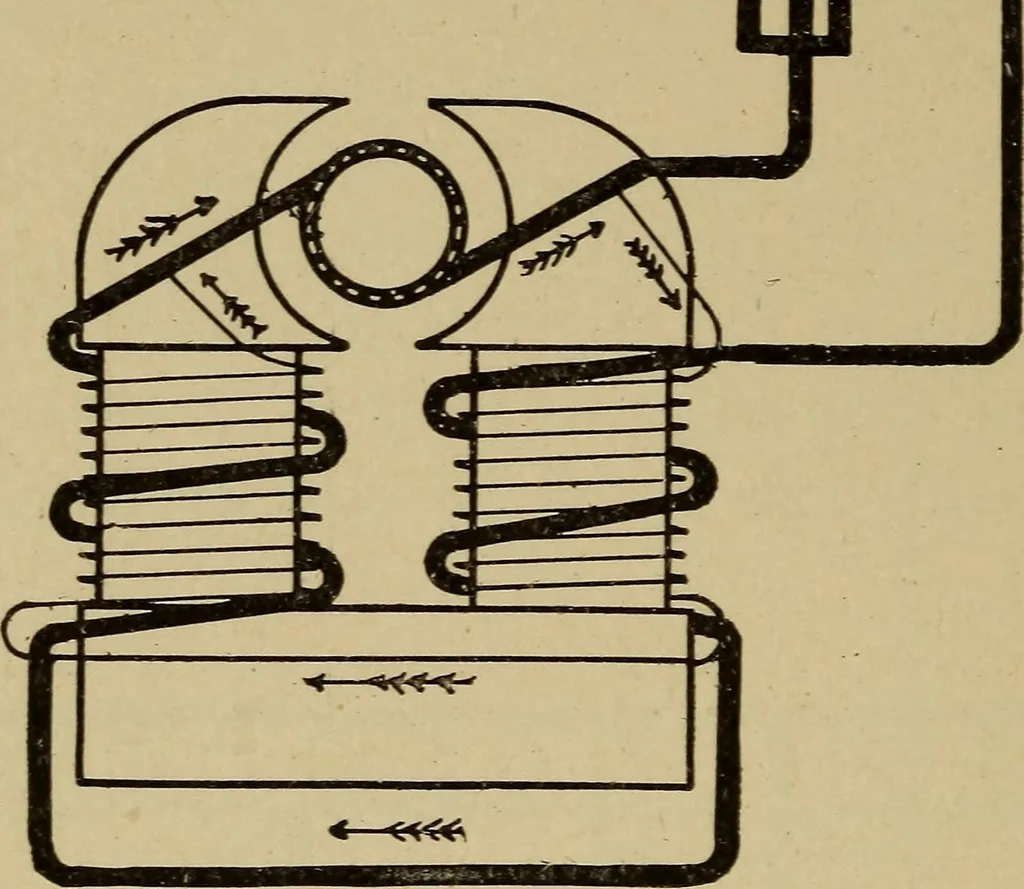

fir* y - c i i ■■) « «v Figure 2. In the shunt wound dynamo the field magnetsare wound with fine wire to receive only a smallportion of the whole current generated in thearmature. These coils are connected to thebrushes of the machine and constitute a by-passcircuit, or what is called a shunt. See… … Figure 3. The compound wound dynamo is a combinationof the series and shunt. The field magnets arewound with two sizes of wire: Coarse wire, whichis in series with the armature and the externalcircuit, and a finer wire, which is in shunt withthe brushes. See Fig. 3. This dynamo is adaptedmore…
Electricity
