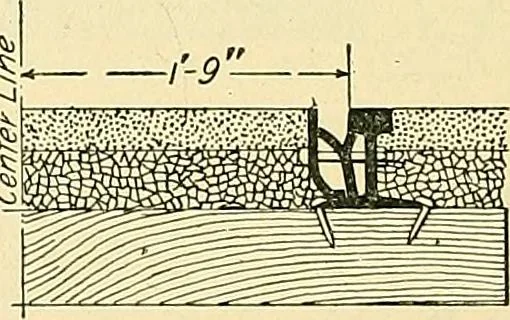

e rail on the outside.On the inside of the rail it is brought up, except at joints,to the lip of an L plate supported, as shown in Fig. 57, bythe foot of the track rail and tiedby a bolt that passes through it, theweb of the rail, and the body of aY filler, which acts as a groove forcarriage… … Fig. 57. P^ortai- 55, Fig. 58 shows a track construction where the railsare supported on concrete stringers A. The rails are con-nected together by steel cross-ties. This figure shows themethod of paving brick up toa T rail, and Fig. 59 shows themethod of bringing up theasphalt. Therail isa…
