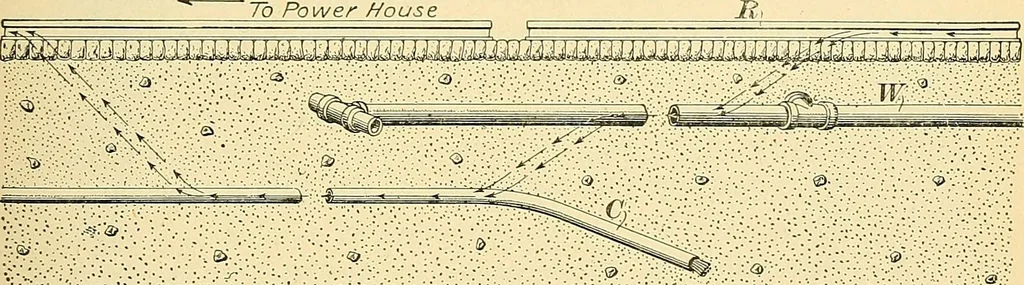

Fig. 8. removed from the station and would be scattered over awide area. On the other hand, with the positive pole con-nected to the trolley, whatever action takes place on thepipes is confined to districts near the power house. Theseareas are comparatively small, and measures can be takento… … Fig. 9. Figs. 9 and 10 show modifications of the simple case shownin Fig. 8. In Fig. 9, the current leaves the rail i?, entersthe pipe W, and flows through TFuntil a better path pre-sents itself in the shape of the lead-sheathed cable C. It 38 ELECTRIC RAILWAYS. 23 flows along C until the track…
