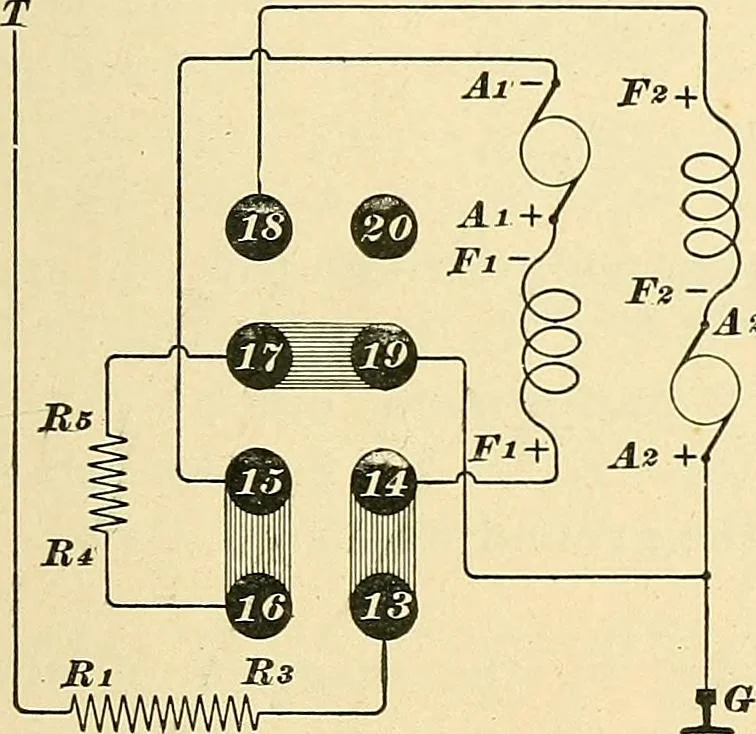

F^--A,- -A,-\- to 53. Fig. 37 shows the No. 1 motor cut in and the No. 2motor cut out. In this case, a quarter-turn on plug No. 2 has broken the connectionbetween posts 17 and 18and made connection be-tween posts 17 and 19 di-rect to the ground at G.One end of the No. 2 motoris left hanging in the… … Ri B3 Fig. 37. IS-U-^F^^-F-at G. 54. Car-Wlrlng Diagrain.—Fig. 38 is a car-wiringdiagram of the Westinghouse 28A controller. K, K are the 53 ELECTRIC RAILWAYvS. § 24 two hood switches; W, the trolley wheel; and FB, the fusebox; the lightning arrester is not shown; /? is the reverseswitch; Z,, the…
