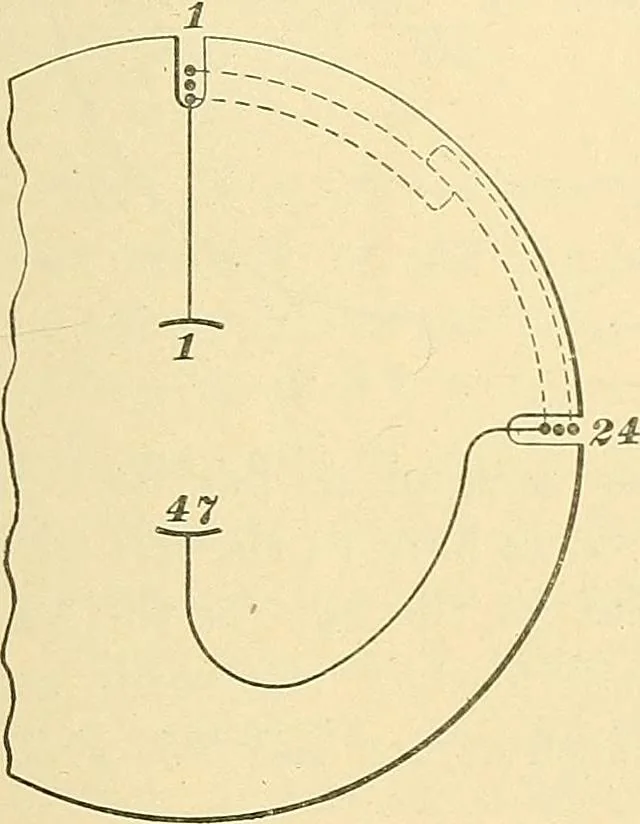

Fig. 56. 84:. Connections for a 93-Coil Armature.—Figs. 58and 59 show the scheme for winding and connecting anyarmature having 93 coils and bars and 93 or 31 slots for ver-tical and diagonal pole pieces, respectively. In both cases,
