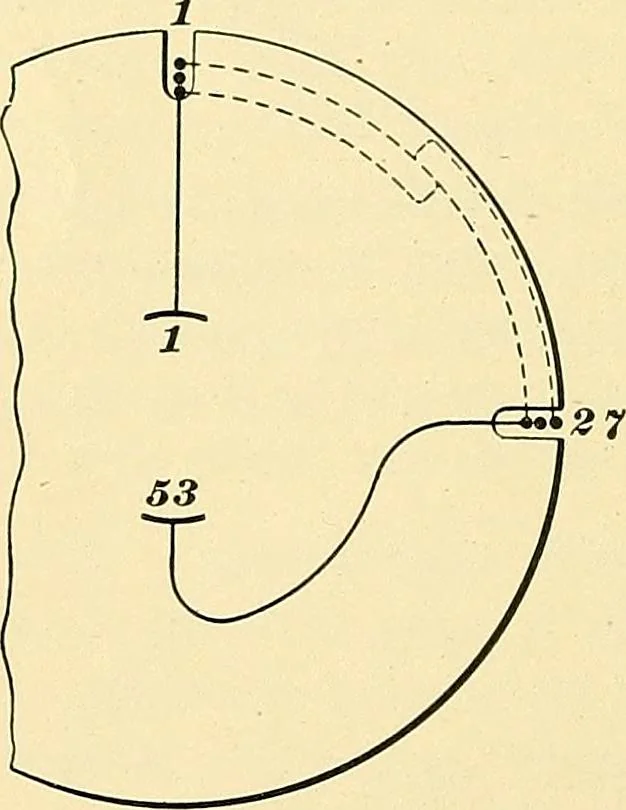

n slot ^^connects to bar 55, obtained either by going half way aroundthe commutator from bar 8S to the right or by counting offa throw of 12 back from bar ^7. 85. Connections foi* a 105-Coil Armature.—Figs. 60and 61 show, respectively, the vertical and diagonal methodsof winding and connecting an…
