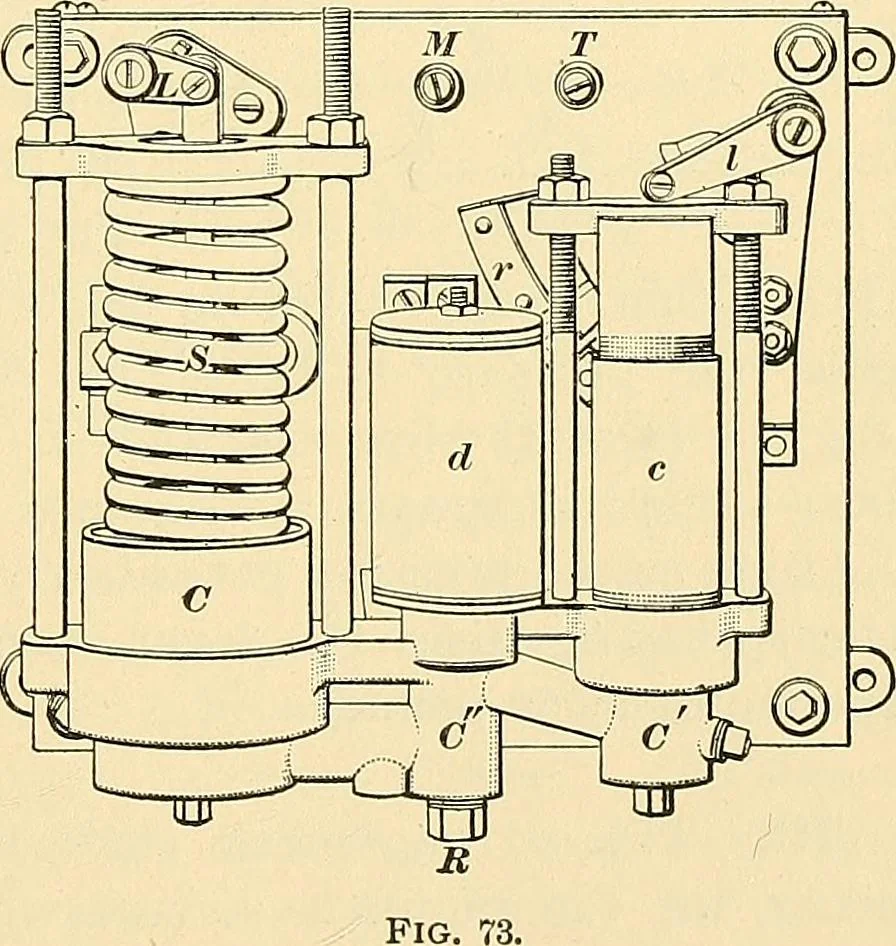

overnor.—The gov-ernor used by the Standard Air-Brake Company is some-what different in principle from the Christensen governorjust described. Fig. 73 is a general view of the device andFig. 74 shows the elec- trical connections. InFig. 73, vS is a heavyspring that actsagainst the reservoirpressure… … 62 ELECTRIC RAILWAYS. §25 Motor Trolley. within it a plunger that is free to move down or up, accord-ing as d is excited or not. In chamber C, Fig. 73, is aspring that pushes up on a cone-seated pin valve. Cham-ber C admits air to cylinder C when the pin valve is in theproper position and cylinder…
