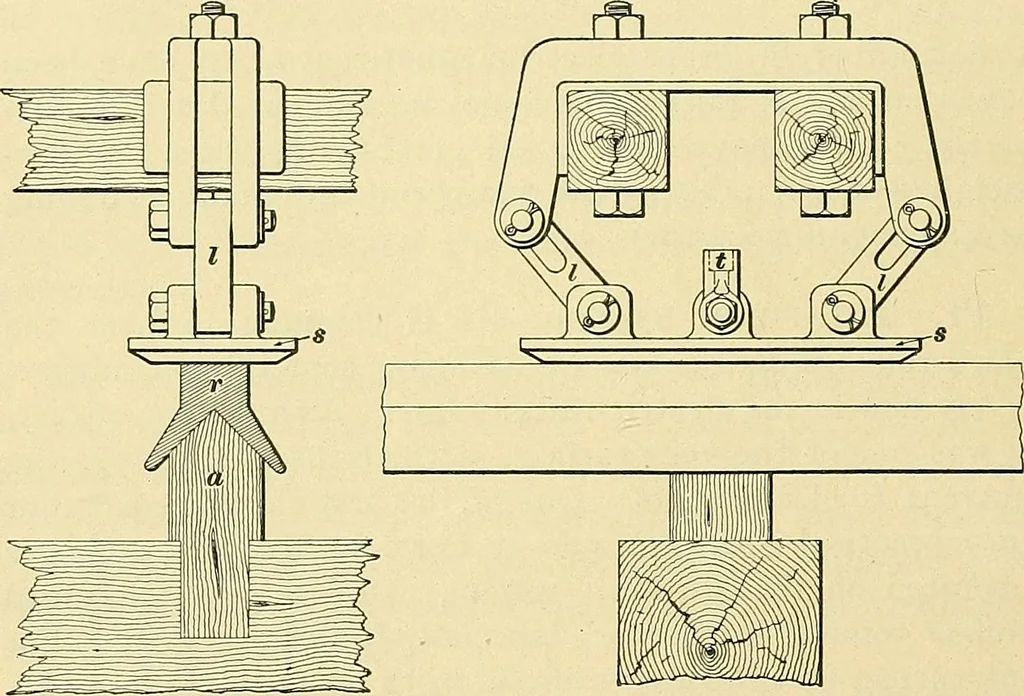

above it gives very satisfactory service andits use is rapidly extending. For example, elevated trainsin New York, Chicago, and Boston are operated by meansof the third rail. 12. Fig. 6 shows a third-rail construction used on theNantasket Beach and East Weymouth Road. The thirdrail r is, in this… … Fig. 0. Electrical continuity betAveen the rails is secured by fasten-ing them together by copper bonds. In the later styles ofthird-rail equipment, which will be described more fullywhen track construction is taken up, porcelain or graniteinsulators are used for supporting the rail. The shoe s,…
