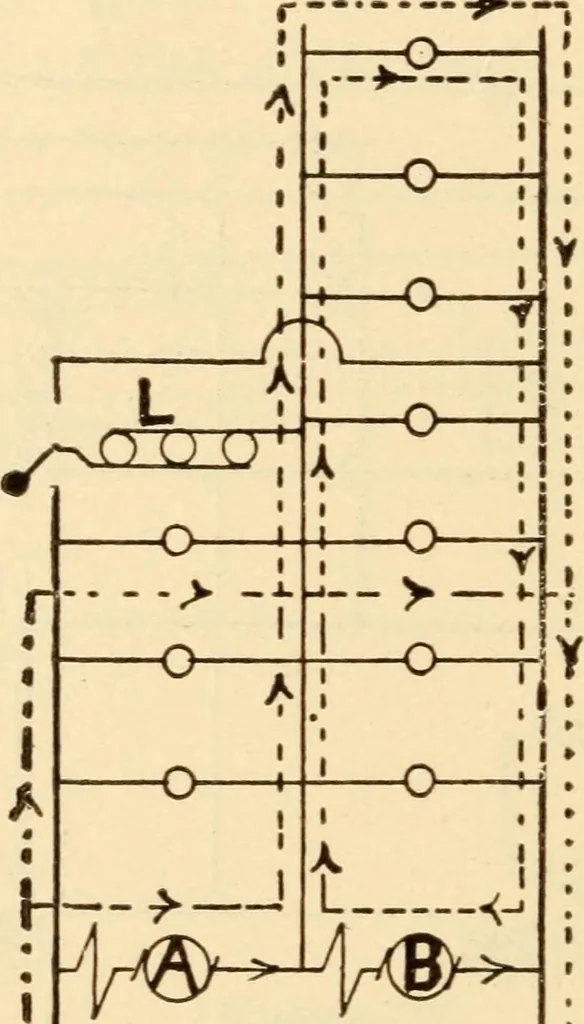

field connections arenot shown in this figure, as they are the same as withordinary generators. 122 Operating and Testing The connections of a balancing set as arranged bythe Western Electric Co. are shown in Figure 81.Here two differentially wound motors are connectedto the same shaft, so that… … : -wwm i + wmr Figure 82 The action of the set can best be comprehended fromobservation of the elementary diagram, Figure 82.With the load unbalanced as shown, current from thegenerator will pass through motor A and supply someof the excess load on the opposite side. As this cur-rent is in…
