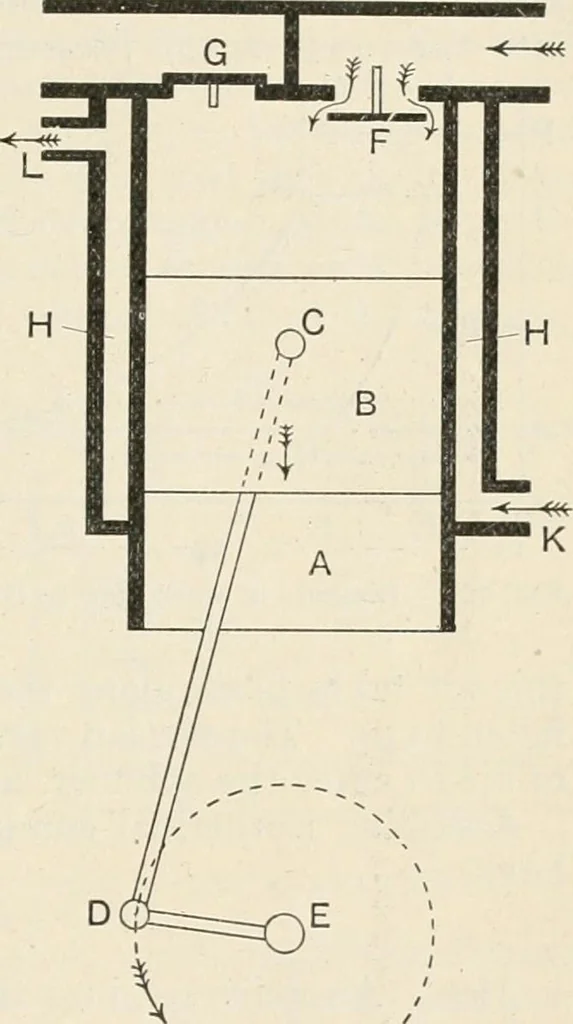

eat from the air while still in the cylinder rather thanfrom the air after it has passed into the receiver. Diagram of work done in an air compressor.—A pressure-volumediagram for the air compressor is shown in Fig. 424. Starting withthe piston at the bottom of the stroke, the cylinder is full of… … Fig. 423. —Section of an air compressor. 438 HEAT CHAP. valves F and G (Fig. 423) are closed during the compression. Whenthe pressure reaches the receiver pressure, p2, the discharge valveG opens, and delivery into the receiver occurs at constant pressurep2 ; this is shown in Fig. 424 by the…
